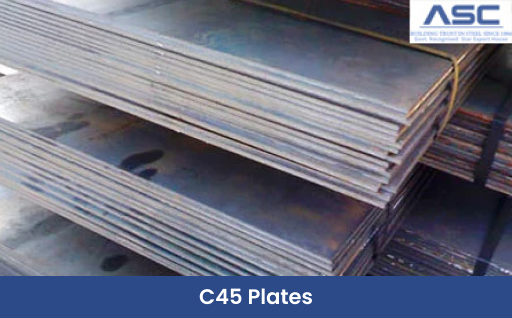

C45 plates type of medium carbon steel plate known for its excellent mechanical properties and versatility in industrial applications. This grade of steel, also known as EN 10083-2, offers good tensile strength, toughness, and wear resistance. It can be heat treated to achieve various hardness levels, making it suitable for applications that require strong, durable components.
C45 plates are commonly used in manufacturing machinery parts, automotive components, and industrial tools where reliable performance under stress and wear is crucial. These plates are often supplied in untreated or normalized conditions and can be further hardened through processes like quenching and tempering or induction hardening.
Amardeep Steel is a leading supplier known for high-quality C45 plates, which are widely appreciated for their superior features. C45 is a versatile grade of steel capable of through hardening via quenching and tempering on limited sections, and it can also be flame or induction hardened to achieve hardness up to HRC 55. C45 comes in various variations denoted by additional letters, which offer slight modifications in chemical composition.
| Country | USA | British | Japan | Australia |
| Standard | ASTM A29 | >EN 10083-2 | JIS G4051 | AS 1442 |
| Grades | 1045 | C45/1.1191 | S45C | 1045 |
| Variant | Cast | Weldability | C % | Si % | Mn % | P % | S % | Cr % | Ni % | Mo % | V % | Ti % | Cu % | Al % | DI % | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB8673 | CC | CEV 0.71max | Min | 0.46 | 0.15 | 0.70 | - | 0.020 | 0.25 | 0.10 | - | - | - | - | 0.020 | 1.70 |
| Pcm 0.55max | Max | 0.49 | 0.35 | 0.80 | 0.020 | 0.035 | 0.30 | 0.20 | - | - | - | 0.25 | 0.040 | 2.00 | ||
| SB1672 | CC | CEV 0.72max | Min | 0.42 | 0.10 | 0.50 | - | 0.020 | - | - | - | - | - | - | - | 1.10 |
| Pcm 0.55max | Max | 0.50 | 0.40 | 0.90 | 0.045 | 0.045 | 0.40 | 0.40 | 0.10 | - | - | - | - | 1.80 | ||
| 5081 | CC | CEV 0.72max | Min | 0.42 | 0.10 | 0.50 | - | 0.020 | - | - | - | - | - | - | - | 1.10 |
| Pcm 0.55max | Max | 0.50 | 0.40 | 0.90 | 0.030 | 0.035 | 0.40 | 0.40 | 0.10 | - | - | - | - | 1.80 | ||
| 5155 | CC | CEV 0.72max | Min | 0.44 | 0.10 | 0.50 | - | - | - | - | - | - | - | - | - | 1.10 |
| Pcm 0.55max | Max | 0.49 | 0.40 | 0.80 | 0.030 | 0.025 | 0.40 | 0.40 | 0.10 | - | - | - | - | 1.80 | ||
| 047A | IC | CEV 0.76max | Min | 0.46 | 0.15 | 0.50 | - | 0.020 | - | - | - | - | - | - | 0.015 | - |
| Pcm 0.6max | Max | 0.50 | 0.40 | 0.80 | 0.030 | 0.030 | 0.25 | 0.25 | 0.10 | 0.100 | 0.005 | 0.25 | 0.030 | - | ||
| C45 EN ISO 683-1 | Std | CEV max | Min | 0.42 | 0.10 | 0.50 | - | - | - | - | - | - | - | - | - | - |
| Pcm max | Max | 0.50 | 0.40 | 0.80 | 0.045 | 0.045 | 0.40 | 0.40 | 0.10 | - | - | 0.30 | - | - |
| Variant | Condition | Format | Dimension [mm] | Yield strength min [MPa] | Tensile strength [MPa] | Elongation A5 [%] | Reduction of area Zmin [%] | Hardness | Impact (ISO-V) strengthmin |
|---|---|---|---|---|---|---|---|---|---|
| Rp0.2 * Reh, ** Rel | |||||||||
| SB1672 | < 16 | 320** | 590-740 | 14 | - | 165-220 HB | - | ||
| 16 < 40 | 310** | 590-740 | 14 | - | 165-220 HB | - | |||
| 40 < 63 | 300** | 590-740 | 14 | - | 165-220 HB | - | |||
| 63 < 120 | 280** | 590-740 | 14 | - | 165-220 HB | - | |||
| 5081 | +AR | Round bar | 20 < 160 | - | - | - | - | < 230 HB | - |
| +QT | Round bar | 20 < 40 | 430** | 650-800 | 16 | 40 | 190-240 HB | 20 °C 25 J (long) | |
| Round bar | 40 < 100 | 370** | 630-780 | 17 | 45 | 185-235 HB | 20 °C 25 J (long) | ||
| 5155 | +AR | Round bar | 25 < 180 | - | - | - | - | < 230 HB | - |
| +QT | Round bar | 25 < 40 | 430** | 650-800 | 16 | 40 | 190-240 HB | 20 °C 25 J (long) | |
| Round bar | 40 < 100 | 370** | 630-780 | 17 | 45 | 185-235 HB | 20 °C 25 J (long) | ||
| 047A | +U | Tube,wall | 10 < 36 | 320 | 650 typical | 16 | - | 200 HB typical | - |
| Tube,wall | 36 < 60 | 300 | 630 typical | 16 | - | 200 HB typical | - | ||
| Tube,wall | > 60 | 280 | 600 typical | 16 | - | 200 HB typical | - | ||
| Round bar | 10 < 36 | 320 | 650 typical | 16 | - | 200 HB typical | - | ||
| Round bar | 36 < 60 | 300 | 630 typical | 16 | - | 200 HB typical | - | ||
| Round bar | < 60 | 280 | 600 typical | 16 | - | 200 HB typical | - | ||
| +N | Tube,wall | < 10 | 320 | 660 typical | 16 | - | 190 HB typical | - | |
| Tube,wall | 10 < 50 | 300 | 630 typical | 16 | - | 190 HB typical | - | ||
| Tube,wall | < 50 | 280 | 600 typical | 16 | - | 190 HB typical | - | ||
| Round bar | < 10 | 320 | 660 typical | 16 | - | 190 HB typical | - | ||
| Round bar | 10 < 50 | 300 | 630 typical | 16 | - | 190 HB typical | - | ||
| Round bar | < 50 | 280 | 600 typical | 16 | - | 190 HB typical | - | ||
| +QT | Tube,wall | 10 < 40 | 370 | 690-770 | 14 | - | 210-240 HB | - | |
| Round bar | 10 < 40 | 370 | 690-770 | 14 | - | 210-240 HB | - | ||
| STANDARD | DIN 17200 | BS | AFNOR | SAE | JIS G 4051 | Steel Number |
|---|---|---|---|---|---|---|
| En 19 | C 45 | C45, AF65C45, 1C45 | 1045 | C45 | S 45 C | 1.0503 |
| Treatment | Condition | Temperature cycle | Cooling/quenching |
|---|---|---|---|
| Hot forging | +U |
800-1150°C |
In still air |
| Normalizing | +N |
840-870°C |
In still air |
| Soft annealing | +SA |
650-700°C |
In still air |
| Stress relieve annealing | +SRA |
550-650°C |
In still air |
| Quench & Tempering | +QT |
840-870°C |
In oil Temper immediately |
| Quench & Tempering | +QT |
820-850°C |
In water Temper immediately |
| Induction or Flame hardening | I-F |
870-900°C |
In oil Temper immediately |
| OUTER DIAMETER AND WALL THICKNESS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Execution | Size Range | OD Tolerance | Wall tolerance | ||||||
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm | ||||||
| Hot-rolled peeled tube | All sizesWall | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) | ||||||
| Cold Worked tubecold-rolled or cold-drawn | OD 80 Wall Thickness 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm | ||||||
