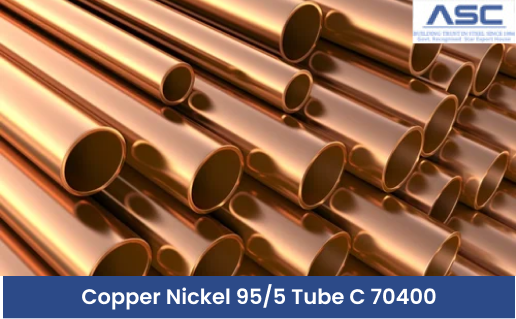

Copper Nickel 95/5 Tube, designated as C70400, is an alloy composed of 95% copper and 5% nickel. This specific composition offers a combination of good mechanical properties and excellent corrosion resistance, particularly in marine environments.
The C70400 copper-nickel alloy is known for its excellent cold and hot workability and high resistance to brackish water, non-oxidizing acids, and seawater corrosion. These tubes are manufactured according to universal product quality standards using modern machinery and the latest technology at a well-equipped infrastructure. Quality control experts ensure that every product is of good quality, with no defects allowed.
Amardeep Steel supplies C70400 95-5 Copper-Nickel Tubes, known for their excellent properties. These tubes are either hot- or cold-worked to achieve the final size and are annealed when necessary to meet specific temper properties. The copper-nickel alloy used in these tubes has low resistivity and works well at temperatures up to 330°C. It is ideal for various applications due to its medium resistivity and low-temperature coefficient of resistance.
| Standard | ASTM B466, B467, B552 / ASME SB466, SB467, SB552, ASTM B 111, B543, ASME SB 111, SB543 |
| Grade | 66-30-2-2 Cu-Ni (C71640, CW353H), 95/5 material |
| Specifications | ASME, SAE, MIL, QQ, ISO, BS, and JIS. |
| Seamless Tube Size | 3.35 mm OD To 101.6 mm OD, 15 NB to 150 NB IN |
| Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length |
| Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Type | Seamless, ERW, EFW, Fabricated |
| End | Plain End, Beveled End, Treaded |
| Marking | All 66/30/2/2 Copper Nickel tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| Element | Cu-Ni 95/5 |
| Sn | 0.10 Max |
| Pb | 0.05 Max |
| Ni | 4.00 - 5.00 |
| Fe | 0.10 Max |
| Mn | 0.25 Max. |
| As | 0.10 Max. |
| Cu Ag | 95.00 - 96.000 |
| Sb | 0.01 Max |
| Bi | 0.0025 Max. |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
| 415 min | 205 min | 30 min |
| Properties * | Metric | English |
| Density | 8.94 g/cc | 0.323 lb/in³ |
| Tensile Strength min.- O61 -/- H55 | 275 MPa -/- 310 MPa | 40 ksi -/- 45 ksi |
| Yield Strength min.- O61 -/- H55 | 105 MPa -/- 240 MPa | 15 ksi -/- 35 ksi |
| CTE, linear | 17.1 10-6/°C @ 20.0 – 300 °C | 9.5 10-6/°F @ 70.0 – 570 °F |
| Specific Heat Capacity | 0.09 cal/g-°C @ 20ºC | 0.09 BTU/lb-°F @ 70ºF |
| Thermal Conductivity | 45 W/m-K @ 20.0 °C | 26 BTU/ft2/ft/h/°F @ 70.0 °F |
| Melting Point | 1099 – 1149 °C | 2010 – 2100 °F |
| ALLOY | STANDARD | UNS |
| 95/5 CuNi | ASTM B 111 | C70400 |
| 80/20 CuNi | ASTMB 111 | C71000 |
| Cunifer | ASTMB 111 | C71640 |
| Outside Diameter, mm |
Wall Thickness, mm | ||||||
| 0.508 | 0.813 | 0.889 | 1.07 | 1.24 and Over | |||
| 0.559 | |||||||
| 0.635 | |||||||
| 0.711 | |||||||
| Diameter Tolerance, Plus and Minus, mm | |||||||
| Up to 12, incl | 0.076 | 0.064 | 0.064 | 0.064 | 0.064 | ||
| Over 12–18, incl | 0.10 | 0.10 | 0.10 | 0.089 | 0.076 | ||
| Over 18–25, incl | 0.15 | 0.15 | 0.13 | 0.11 | 0.10 | ||
| Over 25–35, incl | --- | --- | --- | 0.20 | 0.13 | ||
| Over 35–50, incl | --- | --- | --- | --- | 0.15 | ||
| Over 50–79, incl | --- | --- | --- | --- | 0.17 | ||
| Wall Thickness,mm | Outside Diameter, mm | ||
| Over 12 to 25,incl | Over 25 to 50,incl | Over 50 to 80,incl | |
| 0.50, incl to 0.80 | 0.08 | --- | --- |
| 0.80, incl to 0. 90 | 0.08 | 0.10 | --- |
| 0.90, incl to 1.5 | 0.11 | 0.11 | 0.13 |
| 1.5, incl to 2.1 | 0.13 | 0.13 | 0.14 |
| 2.1, incl to 3.0 | 0.17 | 0.17 | 0.17 |
| 3.0, incl to 3.4 | 0.18 | 0.19 | 0.20 |
| Specified Length, mm | Tolerance, all Plus, mm |
| Up to 4500 | 2.4 |
| Over 4500–6000, incl | 3.2 |
| Over 6000–10 000, incl | 4.0 |
| Over 10 000–18 000, incl | 9.5 |
| Over 18 000–30 000, incl | 13.0 |
