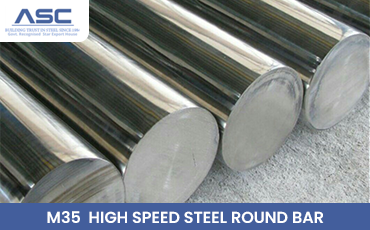

M35 High Speed Steel Round Bar

M35 HSS achieves a hardness of up to 64-66 HRC after heat treatment, owing to its finely distributed carbides and high tensile strength. It excels in wear resistance and maintains sharp cutting edges even at elevated temperatures. ASTM A600 M35 steel, or HSSE/HSS-E, provides excellent hot hardness and wear resistance, ideal for applications demanding precision and durability. This makes M35 HSS Round Bars well-suited for broaches, taps, milling tools, reamers, hobs, and saws, offering effective performance with cost-effective pricing.

 M35 High Speed Steel Round Bar Supplier

Amardeep Steel Supplies M35 HSS Round Bars are widely utilized in industries requiring high-performance cutting tools, including broaches, taps, milling tools, reamers, hobs, and saws. They combine effectiveness with cost-efficiency, making them a preferred choice for various industrial applications.

M35 High Speed Steel Round Bar Specification

M35 High Speed Steel Chemical Composition

M35 HSS Steel Mechanical Properties

 M35 High Speed Steel Round Bar Equivalent Grade

M35 HSS Physical Properties

Elements in HSS properties

Standard grade for High Speed Steels; owing to its balanced composition has good toughness and cutting performance, hence many applications

• Carbon : forms carbides, increases wear resistance, is responsible for the basic matrix hardness. High Speed Steel with high molybdenum and carbon. It has high wear resistance, high red hardness and good toughness. With its low vanadium content, this grade has very good grind ability.
• Tungsten and molybdenum: improve red hardness, retention of hardness and high temperature strength of the matrix, form special carbides of great hardness.
• Vanadium: forms special carbides of supreme hardness, increases high temperature wear resistance, retention of hardness and high temperature strength of the matrix.
• Chromium: promotes depth hardening, produces readily soluble carbides.
• Cobalt: HSS containing cobalt content is a high performance steel with good cutting capability & ensures high red hardness and tempering retention. It is particularly suitable in thermal stress situations and for intermittent cutting

HEAT TREATMENT

Heat treatment temperatures, including rate of heating, cooling and soaking times will vary due to factors such as the shape and size of each M35 hss bar steel component. Other considerations during the heat treatment process include the type of furnace, quenching medium and work piece transfer facilities. Please consult your heat treatment provider for full guidance on heat treatment of high speed tool steel.

Forging: Pre heat the M35 hss bar high speed steel slowly and uniformly to 450-500°C and equalise. Then increase more quickly to the forging temperature of 950-1100°C and equalise prior to forging. Do not allow the forging temperature to drop below 950°C, if this occurs re heating will be necessary. Always cool the steel very slowly after forging.

Annealing: M35 hss bar is supplied in the annealed and machineable condition. Re annealing will only be necessary if the steel has been hot worked, forged, or hardened by the toolmaker. Heat the M35 hss bar high speed steel to 850°C at a rate of no more than 220°C per hour. Always hold at temperature for one hour per 25mm of thickness (with two hours being minimum). Furnace cool slowly. The M35 hss bar annealed hardness achieved should be 260 Brinell or lower.

Stress Relieving: If tools produced from M35 hss bar high speed steel are heavily machined or ground it is recommended to stress relieve after machining and prior to hardening to minimise the possibility of distortion. To stress relieve heat the component to 600-700°C and soak well (approx 2 hours) Cool slowly in the furnace. The tools can be finish machined before heat treatment.

Hardening: For best results harden in a vacuum or controlled furnace, or in a properly rectified salt bath. Pre heat thoroughly in two steps to 450-500°C, then to 820-870°C, transfer to the high temperature salt bath or furnace. The exact hardening temperature to use for M35 hss bar will depend on the type of work being treated, but in general components should be hardened from the range of 1050-1250°C.

Tempering: M35 hss bar high speed steel components can be tempered between 510-620°C. Triple tempering is recommended with a minimum of two hours at temperature per cycle. The component should be cooled in still air to room temperature between tempering treatments.
Temperature [°C] 540 560 580
Hardness [HRc] 67 66 65

 M35 High Speed Steel Round Bar Application

M35 high speed steel is the main feature containing Co general cutting tool steel, quenching hardness is 1200-1240 c. Furthermore, M2 was used in cutter, broach, end milling cutter. For manufacturing strong cutting with wear-resistant, resistant to impact a variety of tools, advanced punching die, screw die, the toughness and complex shape tools, reamer, milling cutter, bunt, punch, etc
