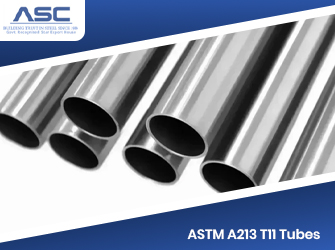

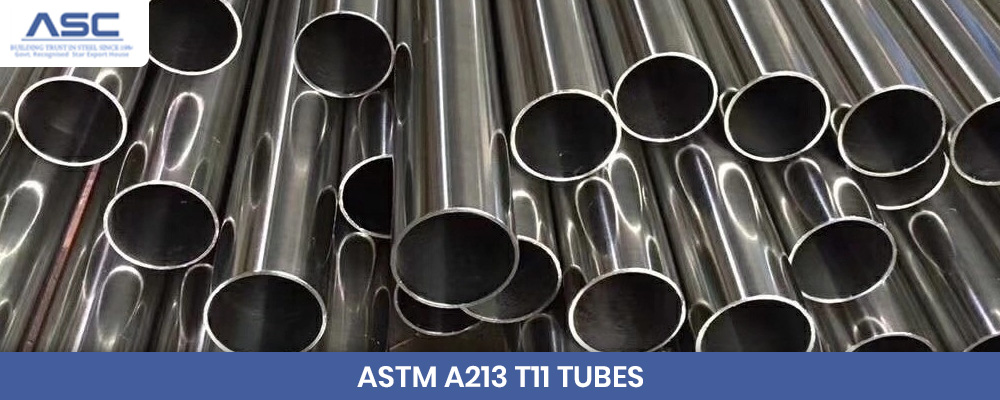

We can offer a comprehensive range of ASTM A213 T11 Alloy Steel Seamless Tube, which are using high-quality raw materials. We have been supplying these Alloy Steel Seamless tubes with the most advanced technology and with the most reliable quality. These A213 / SA213 T12 Alloy Steel SMLS Tubes are available in different sizes, grades, shapes & specifications as per the client's requirements. These ASTM A213 T11 Alloy Tubes are sturdy in design and ensure a longer sustainability period to the user. You can also Order small quantities, we will be happy to quote the best price for small and large quantities. These ASTM A213 / ASME SA213 T11 Alloy Steel Seamless Tubes/Pipes are used in various application industries like petroleum, chemical, power, gas, water, metallurgy, shipbuilding, construction, etc.
| Size (Seamless) | : | 6.35mm o.d to 101.60mm o.d |
| Standards | : | ASTM A213, ASME SA213 |
| Equivalent Standards | : | EN 10216-2, GOST 550-75, WN 1.7335 |
| Material | : | T11, K11597 |
| Equivalent Material | : | P11 |
| Type | : | Seamless |
| Specialized in | : | Large Diameter Size |
| Outer Dimensions | : | 6-2500mm; WT:1-200mm |
| Wall Thickness | : | Schedule 3mm to 15mm. |
| Length | : | max 1~12m |
| Schedule | : | STD, SCH40, SCH80 |
| Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| Length | : | Single Random, Double Random & Cut Length. |
| Tubing End | : | Plain End, Beveled End, Treaded. |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| 0.15 max | 0.30-0.60 | 0.025 max | 0.025 max | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| Tensile Strength , MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 415 min | 205 min | 30 min | 179 max |
| Hot rolled | Outside Diameter, mm | Tolerance, mm |
| OD≤101.6 | +0.4/-0.8 | |
| 101.6＜OD≤190.5 | +0.4/-1.2 | |
| 190.5＜OD≤228.6 | +0.4/-1.6 | |
| Cold Drawn | Outside Diameter, mm | Tolerance, mm |
| OD＜25.4 | ±0.10 | |
| 25.4≤OD≤38.1 | ±0.15 | |
| 38.1＜OD＜50.8 | ±0.20 | |
| 50.8≤OD＜63.5 | ±0.25 | |
| 63.5≤OD＜76.2 | ±0.30 | |
| 76.2≤OD≤101.6 | ±0.38 | |
| 101.6＜OD≤190.5 | +0.38/-0.64 | |
| 190.5＜OD≤228.6 | +0.38/-1.14 |
| Hot rolled | Outside Diameter, mm | Tolerance, % |
| OD≤101.6, WT≤2.4 | +40/-0 | |
| OD≤101.6, 2.4＜WT≤3.8 | +35/-0 | |
| OD≤101.6, 3.8＜WT≤4.6 | +33/-0 | |
| OD≤101.6, WT>4.6 | +28/-0 | |
| OD>101.6, 2.4＜WT≤3.8 | +35/-0 | |
| OD>101.6, 3.8＜WT≤4.6 | +33/-0 | |
| OD>101.6, WT>4.6 | +28/-0 | |
| Cold Drawn | Outside Diameter, mm | Tolerance, % |
| OD≤38.1 | +20/-0 | |
| OD>38.1 | +22/-0 |
Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000mm; and so on.
Max length: 16000mm, also U bending can be offered.
