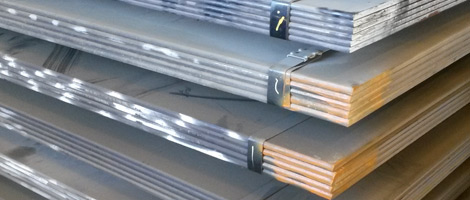

Amardeep steel is one of the leading Manufacturer, Exporter and Supplier of High Quality ASTM A240 TP 310 Stainless Steel Plates and Sheets. We provide a wide range of SS 310 Plates and Sheets in Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange). Our range comprises of SS 310 Plates and Sheets. Available in different dimensions & grades, these stainless steel Chequered Plates and Sheets are widely used in different industries like power, engineering, construction and many more. We also offer competitive range of ss 310 Plates and Sheets in clients requirement.
Specification : |
||
| Standards | : | ASTM A240 / ASME SA240 |
| Size | : | 1/4" to 4" |
| Range | : | 5mm To 150mm |
| Thickness | : | 4.0mm - 100mm |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 310 | 1.4841 | S31000 | - | - | - | - | - |
Production according to national and international standards (e.g. ASME, ASTM, API, EN, DNV, etc.)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310 | min. | - | - | - | - | - | 24.0 | - | 19.0 | - |
| max. | 0.25 | 2.0 | 1.50 | 0.045 | 0.030 | 26.0 | 22.0 | |||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310 | 515 | 205 | 40 | 95 | 217 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 310 | 7750 | 200 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 720 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310 | S310009 | 310S24 | - | 1.4840 | X15CrNi25-20 | - | SUH 310 |
