Stainless Steel 304 Plates Stockist, Stainless Steel 304 Chequered Plates, SS UNS S30400 Coils, SS Rings, ss 304 plates, ss 304 plates Suppliers.
SS UNS S30403 Perforated Sheet, 304 SS Hot Rolled Plate, 304 SS Strips Manufacturer, ss 304 plates, ss 304 sheets, Stainless Steel 304 Sheets, Stainless Steel 304 Foils Dealer in India.

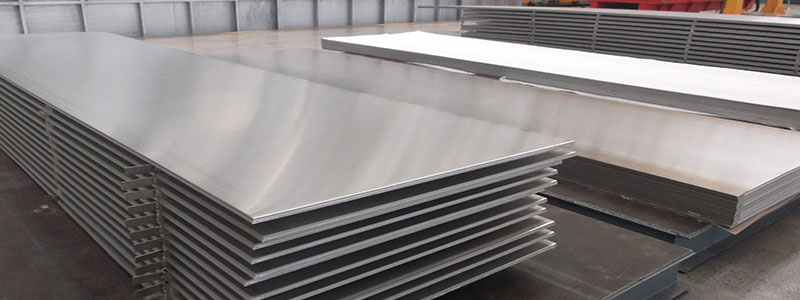

Amardeep steel is one of the leading Manufacturer, Exporter and Supplier of High Quality ASTM A240 TP 304 Stainless Steel Plates and Sheets. We provide a wide range of SS 304 Plates and Sheets in Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange).
Our range comprises of SS 304 Plates and Sheets. Available in different dimensions & grades, these stainless steel Chequered Plates and Sheets are widely used in different industries like power, engineering, construction and many more. We also offer competitive range of ss 304 Plates and Sheets in clients requirement.
Specification :
| Standards | ASTM A240 / ASME SA240 |
|---|---|
| Size | 1/4" to 4" |
| Range | 5mm To 150mm |
| Thickness | 4.0mm - 100mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
Equivalent :
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | Z7CN18‐09 | 304S31 | 08Х18Н10 | X5CrNi18-10 |
Production according to national and international standards (e.g. ASME, ASTM, API, EN, DNV, etc.)
Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. | - | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
Mechanical properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
Physical properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Grade specifications
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
Types Of Stainless Steel 304 Plates, Sheets & Coils :
• Stainless Steel 304 Shim Sheets
• Stainless UNS S30400 Plates
• SS 304 Perforated Sheet Suppliers
• SS 304 Chequered Plate Dealer
• SS 304 Plain Sheets Stockholder
• Stainless UNS S30403 Circles
• Stainless Steel 304 Cold rolled sheet
• Stainless Steel DIN 1.4301 Rings
• Stainless Steel 304 Strips
• SS 304 Foils
• ASTM A240 Stainless Steel 304 Coils
• ss 304 Plates
