Stainless Steel 304H Plates Stockist, Stainless Steel 304H Chequered Plates, SS UNS S30400 Coils, SS Rings, ss 304H plates, ss 304H plates Suppliers. SS UNS S30403 Perforated Sheet, 304H SS Hot Rolled Plate, 304L SS Strips Manufacturer, ss 304H plates, ss 304H sheets, Stainless Steel 304L Sheets, Stainless Steel 304H Foils Dealer in India.

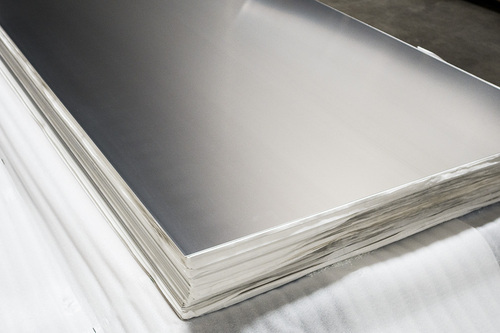

Amardeep steel is one of the leading Manufacturer, Exporter and Supplier of High Quality ASTM A240 TP 304h Stainless Steel Plates and Sheets. We provide a wide range of SS 304h Plates and Sheets in Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange). Our range comprises of SS 304h Plates and Sheets.
Available in different dimensions & grades, these stainless steel Chequered Plates and Sheets are widely used in different industries like power, engineering, construction and many more. We also offer competitive range of ss 304h Plates and Sheets in clients requirement.
Specification :
| Standards | ASTM A240 / ASME SA240 |
|---|---|
| Size | 1/4" to 4" |
| Range | 5mm To 150mm |
| Thickness | 4.0mm - 100mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
Equivalents
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
|---|---|---|---|---|---|---|---|
| SS 304H | 1.4301 | S30409 | - | - | - | - | - |
Production according to national and international standards (e.g. ASME, ASTM, API, EN, DNV, etc.)
Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||
Mechanical properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Physical properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Grade specifications
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 304H | S30409 | 304S51 | - | 1.4948 | X2CrNi18-11 | - | - |
Types Of Stainless Steel 304H Plates, Sheets & Coils :
• Stainless Steel 304H Shim Sheets
• Stainless UNS S30400 Plates
• SS 304H Perforated Sheet Suppliers
• SS 304H Chequered Plate Dealer
• SS 304H Plain Sheets Stockholder
• Stainless UNS S30403 Circles
• Stainless Steel 304H Cold rolled sheet
• Stainless Steel DIN 1.4301 Rings
• Stainless Steel 304H Strips
• SS 304H Foils
• ASTM A240 Stainless Steel 304H Coils
• ss 304H Plates
