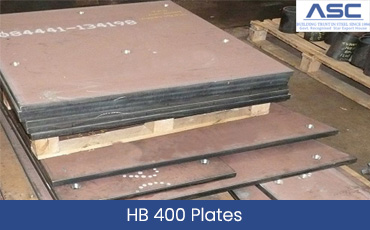

Hardened 400 Plate Supplier, HB 400 Wear Resistant Plate

HB 400 Plate Supplier, HB 400, HB 400 Steel Plates Exporter, HB 400 Abrasion Resistant Steel Plates, HB 400 High Strength Steel Plates, HB 400 Wear Resistant Steel Plates Manufacturer in India.

Amardeep holds the distinction of being one of the most established and reputable exporters and suppliers of Hardened 400 Plate. We provide Hardened 400 Steel Plate, an abrasion-resistant steel renowned for its nominal hardness of 400 HBW. Commonly, Hardened 400 Sheets find application in components and structures subjected to wear and tear. These plates are available in thicknesses ranging from 3 to 130 mm, with lengths extending up to 14,630 mm and widths reaching 3,350 mm. For Hardened 400 Plate widths ≤ 1600 mm and thicknesses between 3 – 8 mm, preferred widths are 1500 or 1600 mm.

Our product range encompasses Hardened 400 Sheet, and the minimum hardness for Hardened 400 Plate stands at 400 HBW. This particular Hardened 400 Steel Plate is well-suited for moderate usage in structural applications due to its excellent weldability, formability, and high toughness. We manufacture Hardened 400 Plates using state-of-the-art machinery to ensure their reliability and durability. These plates offer high formability and weldability, simplifying workshop treatment. Hardened 400 Wear Plate is crafted from wear-resistant steel, combining quality, hardness, and weldability. Thanks to its exceptional bendability, high toughness, and weldability, it can also be employed for load-bearing duties in select applications.

At Amardeep, we provide 400 Hardened Plates in customizable options, allowing clients to specify their preferred size, shape, and finishing. Our commitment to delivering high-quality Hardened 400 Sheets has earned us a substantial and satisfied customer base. The demand for our HB 400 Plates is driven by their exceptional quality, reliability, and durability in various usage environments. You can acquire top-grade Hardened 400 Plate from us at a competitive and affordable price point.

Specification of HB 400 Plates

Width : 500-3000mm
Thickness : 3-130mm
Length : 1000-12000mm
Heat Treatment : N, Q+T
Surface Paint : EP, PE, HDP, SMP, PVDF

Hardened 400 Plates Chemical Composition

Hardened 400 Chemical Composition (%)
Plate	C	Si	Mn	P	S	Cr	Ni	Mo	B	CEV	CET
thickness mm	max %	max %	max %	max %	max %	max %	max %	max %	max %	typv	typv
3- 6	0.15	0.70	1.60	0.025	0.01	0.50	0.25	0.25	0.004	0.41	0.28
3-（8）	0.15	0.70	1.60	0.025	0.01	0.30	0.25	0.25	0.004	0.33	0.23
8 – 20	0.15	0.70	1.60	0.025	0.01	0.50	0.25	0.25	0.004	0.37	0.27
（20）-32	0.18	0.70	1.60	0.025	0.01	1.00	0.25	0.25	0.004	0.48	0.29
（32）-45	0.22	0.70	1.60	0.025	0.01	1.40	0.50	0.60	0.004	0.57	0.31
（45）-51	0.22	0.70	1.60	0.025	0.01	1.40	0.50	0.60	0.004	0.57	0.38
（51）-80	0.27	0.70	1.60	0.025	0.01	1.40	1.00	0.60	0.004	0.65	0.41
（80）-130	0.32	0.70	1.60	0.025	0.01	1.40	1.50	0.60	0.004	0.73	0.48

HB 400 Plates Mechanical Properties

Mechanical properties of Hardened 400
Grade	Mechanical Property			Charpy V Impact Test
HARDOX 400	Yield	Tensile	Elongation	Degree	longitudinal
	Min Mpa	Mpa	Min %	-40	J
	1000	1250	10	-40	45

Hardened 400 Plates Equivalent Grades

CHINA GRADE	CHINA STANDARD	EQUAL GRDAE
CHINA GRADE	CHINA STANDARD	JFE	SAB
NM400	GB/T 24186-2009	EH400	HARDOX 400

Hardened 400 Plate Thickness, Hardened 400 Plate Hardness

Thickness (mm)	Product	Hardness Range (HBW)
2.5 – 6.4	Cut Lengths	360 – 420
5 – 15	Heavy Plates	360 – 420
15- 30	Heavy Plates	360 – 450
30 – 60	Heavy Plates	360 – 480

HB 400 Plate Sizes, Hardened 400 Plate Weight

Thickness	Size	Lbs./Sq.Ft
3/16"	96" x 240"	7.660
1/4"	96" x 240"	10.210
5/16"	96" x 240"	12.760
3/8"	96" x 240"	15.310
1/2"	96" x 240"	20.420
5/8"	96" x 240"	25.520
3/4"	96" x 288"	30.630
1"	96" x 240"	40.840
