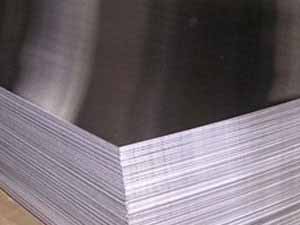

We are one of the leading Manufacturers, Supplier and Exporters of high quality Inconel 718 Plates, Sheets & Coils in Mumbai, India. Inconel 718 Plates/ Sheets are nickel-chromium alloy with an addition of aluminum for outstanding resistance to oxidation and other forms of high temperature corrosion. These Inconel 718 sheets (UNS N07718) are used for Heat treating muffles and retorts, Catalyst support grids in nitric acid production, Radiant tubes, Steam super-heater tube supports, and more. Inconel Plates, Sheets and Coils are available in special alloys like Inconel 718, Inconel 601, Inconel 625, Inconel 718, Inconel X-750, Incoloy 800, Incoloy 800H/ HT and Incoloy 825. We are manufactured as per the international quality and safety standards. These 718 inconel Sheets, Plates & Coils are widely used in various applications industry. We also offer these Sheets & Plates are available in different size,grades, specification & thickness as per the clients requirements.
| Size | : | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | : | 0.1mm to 12 mm Thk |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | OR |
| Inconel 718 | 2.4668 | N07718 | - | - | - | - | - | - |
| Inconel | % | Ni | Cr | Fe | Mo | Nb | Co | C | Mn | Si | S | Cu | Al | Ti |
| 718 | Min. | 50 | 17 | balance | 2.8 | 4.75 | 0.2 | 0.7 | ||||||
| Max. | 55 | 21 | 3.3 | 5.5 | 1 | 0.08 | 0.35 | 0.35 | 0.01 | 0.3 | 0.8 | 1.15 |
| Density | 8.2 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 1,35,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 482 |
| Elongation | 45 % |
