Inconel 625 werkstoff nr. 2.4856 Plates, Gr 625 Inconel Cold Rolled Plates, DIN 2.4856 Plain Sheets, Inconel 625 Perforated Sheet Stockist, Inconel 625 Shim Sheet.
ASTM B163 Inconel 625 Welded Plates, Inconel 625 Alloy Hot Rolled Plate, UNS N06625 Inconel 625 Chequered Plate, Inconel 625 Din 2.4856 Polished Plate Manufacturers in India.
ASME SB-167 / 775 / 829 Inconel UNS N06625 Diamond Plates, Inconel Alloy 625 Industrial Sheets, Inconel UNS N06625 Plates Exporter in India, Inconel 625 Sheet Supplier.

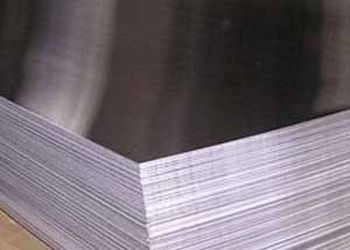

We are one of the leading Manufacturers, Supplier and Exporters of high quality Inconel 625 Plates, Sheets & Coils in Mumbai, India. Inconel 625 Plates/ Sheets are nickel-chromium alloy with an addition of aluminum for outstanding resistance to oxidation and other forms of high temperature corrosion. These Inconel 625 sheets (UNS N07625) are used for Heat treating muffles and retorts, Catalyst support grids in nitric acid production, Radiant tubes, Steam super-heater tube supports, and more.
Inconel Plates, Sheets and Coils are available in special alloys like Inconel 600, Inconel 601, Inconel 718, Inconel 625, Inconel X-750, Incoloy 800, Incoloy 800H/ HT and Incoloy 825. We are manufactured as per the international quality and safety standards. These 625 inconel Sheets, Plates & Coils are widely used in various applications industry. We also offer these Sheets & Plates are available in different size,grades, specification & thickness as per the clients requirements.
Specification Inconel 625 Plates:
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
|---|---|
| Thickness | 0.1mm to 12 mm Thk |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Equivalent Grades of Inconel 625 Plate
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NC22DNB4M | NA 21 | ХН75МБТЮ | NiCr22Mo9Nb | ЭИ602 |
Chemical Composition Inconel 625 UNS N06625 Sheet, Coil and Plate :
| Ni | Fe | C | Mn | Si | Cr2 | Mo | Co | Al | Ti | Nb + Ta | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 58.0 min | 5.0 max | 0.10 max | 0.50 max | 0.50 max | 20.0-23.0 | 8.0-10.0 | 1.0 max | 0.40 max | 0.40 max | 3.15–4.15 | 0.015 max | 0.015 max |
Mechanical & Physical Properties of Inconel 625 sheet :
| Density | 8.4 g/cm3 |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 1,35,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 517 |
| Elongation | 42.5 % |
Types Of Inconel 625 Plates, Sheets and Coils :
• Inconel 625 Sheets
• Inconel 625 Shim Sheet
• Inconel 625 Perforated Sheet
• Inconel 625 Chequered Plate
• Inconel 625 Rolls
• Inconel 625 Ring
• Inconel 625 Coils
• Inconel 625 Strips
• Inconel 625 Flat
• Inconel 625 Blank
• Inconel 625 Profile
• Inconel 625 Foils
