Incoloy 800 Coiled Tube Manufacturer, Incoloy 800H Coiled Tube, ASTM B163 Incoloy 800 Coiled Tube Supplier, Incoloy 800 Welded Coiled Tube, Werkstoff Nr. 1.4876 Incoloy 800 Coiled Tubing Price in India.
Incoloy UNS N08811 Seamless Coiled Tube, Incoloy 800HT Coiled Tube, Supplier of Incoloy 800 Coiled Tubing, 800 Incoloy Welded Coiled Tubes, Incoloy 800H Coiled Tubes, 800 Incoloy WNR 1.4958 Coiled TubingUNS N08800 Incoloy 800 Coiled Tube, Incoloy Alloy 800 ERW Coiled Tubes, N08810 Incoloy 800H Coiled Tube Supplier, WERKSTOFF NR 1.4859 Incoloy 800HT Tubing Exporter.

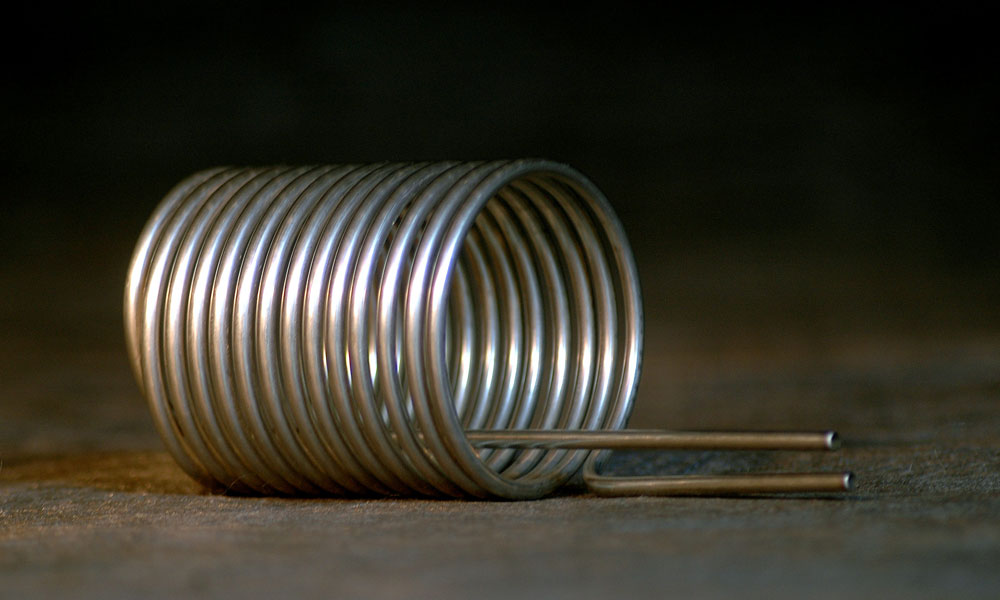

Amardeep Steel Centre is a proud Incoloy 800 Coiled Tube, Incoloy 800H Coiled Tube & Incoloy 800HT Coiled Tube Manufacturer, Supplier & Exporter in India. These Incoloy 800 / 800H / 800HT Seamless COiled Tube is an austenitic heat resistant alloy designed for high temperature structural applications. Inconel 800 Coiled tube is primarily used in applications, where the temperature could rise up to 1100° F. The Incoloy WERKSTOFF NR. 1.4876 Coiled Tubing is also able to resist getting corroded in nitriding atmospheres. Incoloy 800 / 800H / 800HT Coiled Tube won't get embrittled even after delayed times of being utilized in a temperature that ranges between 1200 ° F - 1600° F, which is where numerous hardened steel grades will, in general, get weak. These Incoloy 800/800H/800HT Coiled Tubes Manufacturer by us are high corrosion resistant, tensile strength, robust design, flawless finish and durability. As a prestigious Incoloy 800 Coiled Tube Manufacturer & Supplier we offer these Incoloy 800/800H/800HT Coiled Tubes in various size, standards, dimensions, thickness & variations as per the customer’s requirement.
Incoloy Alloy 800/800H/800HT Coiled Tubes Specifications:
| Specifications | ASTM B163, B515 / ASME SB163, B515 |
|---|---|
| Dimensions | ASTM, ASME and API |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
| Form | Coiled |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treadedc. |
800 / 800H / 800HT Inconel Alloy Coiled Tube Chemical Composition:
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Incoloy 800 / 800H / 800HT Coil Tubing Mechanical Properties:
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Equivalent Grades for 800 / 800H / 800HT Incoloy Seamless and Welded Coiled Tubes:
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
