Stainless Steel Socket Weld Raised Face Flanges, Alloy Steel Socket Weld Flanges Manufacturer & Exporter.
ASME B 16.5, ASME B 16.47, MSS SP44, ASTM A182, 240, 105, 350, SB564, 160, 472 Duplex SWRF Flanges Suppliers.
We are the leading Manufacturers, Supplier and Exporters of Socket Weld Raised Face Flanges using high quality raw materials. Socket weld flange is similar to the slip-on flange in outline, but the bore is counter-bored to accept pipe.Socket weld flanges are primarily used to make flanged joints where required in small sizes in socket welded pipe specs. These SWRF Flanges is available in various size, grades, Specification & thickness as per the clients requirments. These SWRF flanges are offered at market leading rates.
Specifications :
| Size | ½" (15 NB) to 48" (1200NB) |
|---|---|
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Standards | ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 |
| B.S | BS4504 , BS4504, BS1560, BS10 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Grades :
Stainless Steel Socket Weld Raised Face Flanges :
ASTM A182, A240 F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L
Carbon Steel Socket Weld Raised Face Flanges :
ASTM A 105, ASTM A 350 LF 2, ASTM A694 F52 - F60 - F65 - F70
Alloy Steel Socket Weld Raised Face Flanges :
ASTM A182 F1,F5,F9,F11,F22,F91
Nickel Alloy Socket Weld Raised Face Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).
Copper Alloy Socket Weld Raised Face Flanges :
ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)
Duplex Steel Socket Weld Raised Face Flanges :
ASTM A182, A240 F 44, F 45, F51, F 53, F 55, F 60, F 61

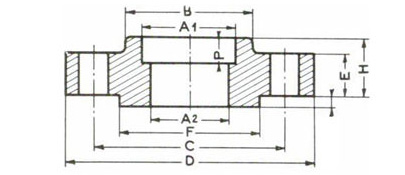

ASME B16.5 Socket Weld Raised Face Flanges Dimensions
