Amardeep Steel Centre is one of the leading Manufacturers, Supplier and Exporters of high quality Instrumentation Tubing in Mumbai, India.These are manufactured using high quality raw material and advanced technology to meet the diverse requirements of our clients. We are manufactured as per the national & international quality standards.These are widely used in different industries. These are available in different specification & thickness as per clients requirements. We also offer the all types of these products like Union Tee, Elbow, Cross, Male Connector, Male Elbow, Female Pipes, Female Connector, Street Tee, Street Elbow, Allen Key, Bushing etc.

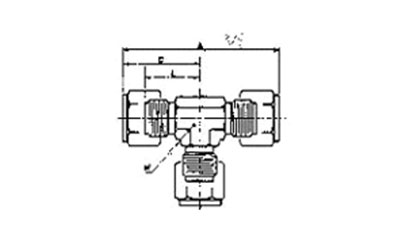

| Imperial Tubing | ||||||||||
| Tube O.D (inch) |
Part Number | A | C | L | W (inch) |
Min. bore | ||||
| inch | mm | inch | mm | inch | mm | inch | mm | |||
| 1/16 | ASC-1UT1 | 1.40 | 35.6 | 0.70 | 17.8 | 0.56 | 14.2 | 5/16 | 0.05 | 1.3 |
| 1/8 | ASC-2UT2 | 1.82 | 46.2 | 0.91 | 23.1 | 0.66 | 16.8 | 5/16 | 0.09 | 2.3 |
| 3/16 | ASC-3UT3 | 1.88 | 47.8 | 0.94 | 24.9 | 0.69 | 17.5 | 7/16 | 0.13 | 3.3 |
| 1/4 | ASC-4UT4 | 2.03 | 51.6 | 1.02 | 25.9 | 0.72 | 18.3 | 7/16 | 0.19 | 4.8 |
| 5/16 | ASC-5UT5 | 2.21 | 56.1 | 1.10 | 27.9 | 0.81 | 20.6 | 9/16 | 0.25 | 6.4 |
| 3/8 | ASC-6UT6 | 2.27 | 57.7 | 1.13 | 28.7 | 0.84 | 21.3 | 9/16 | 0.28 | 7.1 |
| 1/2 | ASC-8UT8 | 2.71 | 68.8 | 1.35 | 34.3 | 0.97 | 24.6 | 3/4 | 0.41 | 10.4 |
| 5/8 | ASC-10UT10 | 2.89 | 73.4 | 1.44 | 36.6 | 1.06 | 26.9 | 7/8 | 0.50 | 12.7 |
| 3/4 | ASC-12UT12 | 3.09 | 78.5 | 1.54 | 39.1 | 1.16 | 29.5 | 1.1/16 | 0.63 | 16.0 |
| 7/8 | ASC-14UT14 | 3.33 | 84.6 | 1.66 | 42.2 | 1.28 | 32.5 | 1.5/16 | 0.75 | 19.1 |
| 1 | ASC-16UT16 | 3.56 | 90.4 | 1.78 | 45.2 | 1.31 | 33.3 | 1.5/16 | 0.88 | 22.4 |
| Metric Tubing | ||||||||||
| Tube O.D (mm) |
Part Number | A | C | L | W | Min. bore (mm) |
||||
| mm | mm | mm | inch | |||||||
| 3 | ASC-3MUT | 46.6 | 23.3 | 16.7 | 5/16 | 2.4 | ||||
| 4 | ASC-4MUT | 48.2 | 24.1 | 17.5 | 5/16 | 3.0 | ||||
| 6 | ASC-6MUT | 51.6 | 25.8 | 18.3 | 7/16 | 4.8 | ||||
| 8 | ASC-8MUT | 56.2 | 28.1 | 20.6 | 9/16 | 6.4 | ||||
| 10 | ASC-10MUT | 66.0 | 33.0 | 25.4 | 3/4 | 7.9 | ||||
| 12 | ASC-12MUT | 69.4 | 34.7 | 24.6 | 3/4 | 9.5 | ||||
| 16 | ASC-16MUT | 74.2 | 37.1 | 27.0 | 7/8 | 12.7 | ||||
| 18 | ASC-18MUT | 79.0 | 39.5 | 29.4 | 1.1/16 | 15.1 | ||||
| 20 | ASC-20MUT | 85.2 | 42.6 | 32.5 | 1.5/16 | 15.9 | ||||
| 25 | ASC-25MUT | 91.2 | 45.6 | 33.3 | 1.3/8 | 22.2 | ||||

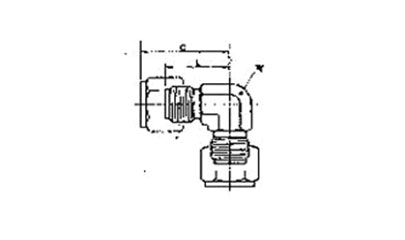

| Imperial tubing | ||||||||||
| Tube O.D (inch) |
Part Number | C | L | W (inch) |
Min. bore | |||||
| inch | mm | inch | mm | inch | mm | |||||
| 1/16 | ASC-IUE1 | 0.70 | 17.8 | 0.56 | 14.2 | 5/16 | 0.05 | 1.3 | ||
| 1/8 | ASC-2UE2 | 0.61 | 23.1 | 0.66 | 16.8 | 5/16 | 0.09 | 2.3 | ||
| 3/16 | ASC-3UE3 | 0.94 | 23.9 | 0.69 | 17.5 | 7/16 | 0.13 | 3.3 | ||
| 1/4 | ASC-4UE4 | 1.02 | 25.9 | 0.72 | 18.3 | 7/16 | 0.19 | 4.8 | ||
| 5/16 | ASC-5UE5 | 1.10 | 27.9 | 0.81 | 20.6 | 9/16 | 0.25 | 6.4 | ||
| 3/8 | ASC-6UE6 | 1.13 | 28.7 | 0.84 | 21.3 | 9/16 | 0.28 | 7.1 | ||
| 1/2 | ASC-8UE8 | 1.35 | 34.3 | 0.97 | 24.6 | 3/4 | 0.41 | 10.4 | ||
| 5/8 | ASC-10UE10 | 1.44 | 36.6 | 1.06 | 26.9 | 7/8 | 0.50 | 12.7 | ||
| 3/4 | ASC-12UE12 | 1.54 | 39.1 | 1.16 | 29.5 | 1.1/16 | 0.63 | 16.0 | ||
| 7/8 | ASC-14UE14 | 1.66 | 42.2 | 1.28 | 32.5 | 1.5/16 | 0.75 | 19.1 | ||
| 1 | ASC-16UE16 | 1.78 | 45.2 | 1.31 | 33.3 | 1.5/16 | 0.88 | 22.4 | ||
| Metric tubing | ||||||||||
| Tube O.D (mm) |
Part Number | C | L | W (inch) |
Min. bore ( mm) |
|||||
| mm | mm | |||||||||
| 3 | ASC-3MUE | 23.3 | 16.7 | 5/16 | 2.4 | |||||
| 4 | ASC-4MUE | 24.1 | 17.5 | 5/16 | 3.0 | |||||
| 6 | ASC-6MUE | 25.8 | 18.3 | 7/16 | 4.8 | |||||
| 8 | ASC-8MUE | 28.1 | 20.6 | 9/16 | 6.4 | |||||
| 10 | ASC-10MUE | 33.0 | 25.4 | 3/4 | 7.9 | |||||
| 12 | ASC-12MUE | 34.7 | 24.6 | 3/4 | 9.5 | |||||
| 16 | ASC-16MUE | 37.1 | 27.0 | 7/8 | 12.7 | |||||
| 18 | ASC-18MUE | 39.5 | 29.4 | 1.1/16 | 15.1 | |||||
| 20 | ASC-20MUE | 42.6 | 32.5 | 1.5/16 | 15.9 | |||||
| 25 | ASC-25MUE | 45.6 | 33.3 | 1.5/16 | 22.2 | |||||

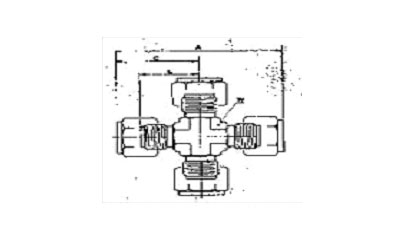

| Imperial Tubing | |||||||||||
| Tube O.D (mm) |
Part Number | A | C | L | W (inch) |
Min. bore | |||||
| inch | mm | inch | mm | inch | mm | inch | mm | ||||
| 1/8 | ASC-2UC2 | 1.81 | 46.0 | 0.91 | 23.0 | 0.66 | 16.8 | 7/16 | 0.09 | 2.3 | |
| 3/16 | ASC-3UC3 | 1.88 | 47.8 | 0.94 | 23.9 | 0.69 | 17.5 | 7/16 | 0.13 | 3.3 | |
| 1/4 | ASC-4UC4 | 2.03 | 51.6 | 1.02 | 25.9 | 0.72 | 18.3 | 7/16 | 0.19 | 4.8 | |
| 5/16 | ASC-5UC5 | 2.21 | 56.6 | 1.10 | 27.9 | 0.81 | 20.6 | 9/16 | 0.25 | 6.4 | |
| 3/8 | ASC-6UC6 | 2.27 | 57.7 | 1.13 | 28.7 | 0.84 | 21.3 | 9/16 | 0.28 | 7.1 | |
| 1/2 | ASC-8UC8 | 2.71 | 68.8 | 1.35 | 34.3 | 0.97 | 24.6 | 3/4 | 0.41 | 10.4 | |
| 5/8 | ASC-10UC10 | 2.89 | 73.4 | 1.44 | 36.6 | 1.06 | 26.9 | 7/8 | 0.50 | 12.7 | |
| 3/4 | ASC-12UC12 | 3.09 | 78.5 | 1.54 | 39.1 | 1.16 | 29.5 | 1.1/16 | 0.63 | 16.0 | |
| 7/8 | ASC-14UC14 | 3.27 | 83.1 | 1.63 | 41.4 | 1.25 | 31.8 | 1.5/16 | 0.75 | 19.1 | |
| 1 | ASC-16UC16 | 3.82 | 97.0 | 1.91 | 48.5 | 1.44 | 36.6 | 1.5/16 | 0.88 | 22.4 | |
| Metric tubing | |||||||||||
| Tube O.D (mm) |
Part Number | A | C | L | W (inch) |
Min. bore (mm) |
|||||
| mm | mm | mm | |||||||||
| 3 | ASC-3MUC | 46.8 | 23.4 | 16.8 | 7/16 | 2.4 | |||||
| 4 | ASC-4MUC | 48.2 | 24.1 | 17.5 | 7/16 | 3.0 | |||||
| 6 | ASC-6MUC | 51.6 | 25.8 | 18.3 | 7/16 | 4.8 | |||||
| 8 | ASC-8MUC | 56.2 | 28.1 | 20.6 | 9/16 | 6.4 | |||||
| 10 | ASC-10MUC | 66.0 | 33.0 | 25.4 | 3/4 | 7.9 | |||||
| 12 | ASC-12MUC | 69.4 | 34.7 | 24.6 | 3/4 | 9.5 | |||||
| 16 | ASC-16MUC | 72.6 | 36.3 | 26.2 | 7/8 | 12.7 | |||||
| 18 | ASC-18MUC | 79.0 | 39.5 | 29.4 | 1.1/16 | 15.1 | |||||
