Amardeep Steel Centre, a leading supplier, offers a range of pipe fittings made from Titanium Grade 5. These fittings serve the purpose of redirecting the flow of fluid, including elbows and tees. Titanium Grade 5 is a highly versatile and commonly used alloy in the titanium family, comprising 90% titanium, 6% aluminum, and 4% vanadium. This alpha-beta titanium alloy benefits from the aluminum stabilizing the alpha phase and the vanadium stabilizing the beta phase.
The selection of Titanium Grade 5 fittings includes various types such as elbows, tees, wyes, crosses,
couplings, unions, compression fittings, caps, plugs, and valves. These fittings are widely utilized due
to their excellent blend of properties. Additionally, they can undergo further processing to enhance
their suitability for specific applications.
Ti-6Al-4V fittings can be effectively heat-treated to further improve their properties. Common heat
treatment methods include mill annealing, solution treatment, and aging. Stress relieving is employed for
formed and welded parts, while beta annealing is used to enhance strength.
Astm b363 grade wpt5 fittings exhibit a natural ceramic oxide layer on their surface, which provides
protection in most environments except for the harshest conditions.
Buttweld fittings, conforming to Astm b363 wpt5 standards, are commonly employed in welding processes,
both manual and automated, to join steel components. These fittings facilitate the connection of two metal
pieces, such as pipes or frameworks in factories, as well as flanges. They serve as integral components in
piping systems, allowing changes in direction, branching, or alterations in pipe diameter through
mechanical joining.
Astm b363 grade 5 fittings find widespread usage in saltwater applications and humid environments. They
offer moderate resistance to highly acidic environments. Hot working is typically performed to achieve the
desired microstructure through the recrystallization process, ensuring high ductility while maintaining
lower hardness and yield strength.

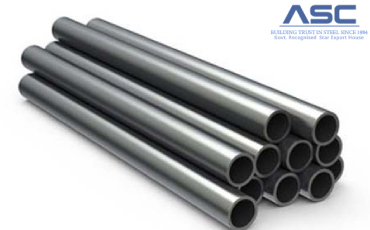

Titanium Grade 5 Pipe Specifications
| Other Trade Name | Ti-6AL-4V ELI Titanium, Ti Alloy Grade 5, Ti-6AL-4V ELI Titanium, TC4 Titanium Alloy, Ti-6al-4v Grade 5 |
|---|---|
| Materials Selection and Specification | ASTM B 337 ASME SB 337 / ASTM B 338 ASME SB 338 / ASTM B861 / B862 |
| Available Sizes | ½” to 24”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Different Types | Seamless / ERW / Welded / Fabricated |
| Available Forms | Round, Hydraulic, square |
| Pipe End Abbreviations | Bevel large end, Bevel one end, Plain Both Ends, Treaded One End, Beveled One End, Beveled end, Plain One End, Bevel small end, Treaded Both Ends, Bevel both ends, |
| UNS | R56400 |
| WERKSTOFF NR. | 3.7165 |
| Melting Point | 1632 °C (2970 °F) |
| Specifications | ASTM B 337 ASME SB 337 / ASTM B 338 ASME SB 338 |
| Dimensions | ASTM, ASME and API |
| Size | ½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Specialized in | Large Diameter Size |
| Types | ERW / Seamless / Fabricated/ Welded |
| Forms | Hydraulic, Round Etc |
| Length | Double, Single & Cut Length. |
| End pipes | Plain, Threaded, Beveled End, |
Schedule Chart of Titanium grade 5 Pipe
|
1/8" IPS(.405"O. D.)
|
3 1/2" IPS( 4.000"O. D.)
|
|---|---|
|
SCH 40, 80
|
SCH 10, 40, 80, 160, XXH
|
|
1/4" IPS(.540"O. D.)
|
4" IPS(4.500"O. D.)
|
|
SCH 10, 40, 80
|
SCH 10, 40, 80, 160, XXH
|
|
3/8" IPS(.675"O. D.)
|
5" IPS( 5.563"O. D.)
|
|
SCH 10, 40, 80
|
SCH 10, 40, 80, 160, XXH
|
|
1/2" IPS(.840"O. D.)
|
6" IPS(6.625"O. D.)
|
|
SCH 5, 10, 40, 80, 160, XXH
|
SCH 5, 10, 40, 80, 120, 160, XXH
|
|
3/4" IPS(1.050"O. D.)
|
8 ” IPS(8.625"O. D.)
|
|
SCH 10, 40, 80, 160, XXH
|
SCH 5, 10, 40, 80, 120, 160, XXH
|
|
1" IPS:(1.315′O. D.)
|
10" IPS(10.750"O. D.)
|
|
SCH 5, 10, 40, 80, 160, XXH
|
SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
|
|
1-1/4" IPS(1.660"O. D.)
|
12" IPS(12.750"O. D.)
|
|
SCH 10, 40, 80, 160, XXH
|
SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
|
|
1-1/2" IPS(1.900"O. D.)
|
14" IPS(14.000"O. D.)
|
|
SCH 10, 40, 80, 160, XXH
|
SCH10 (.188), SCH40 (.375)
|
|
2" IPS(2.375"O. D.)
|
16" IPS(16.000"O. D.)
|
|
SCH 10, 40, 80, 160, XXH
|
SCH10(.188), SCH40(.375)
|
|
2 1/2" IPS(2.875"O. D.)
|
18" IPS (18.000"O. D.)
|
|
SCH 10, 40, 80, 160, XXH
|
SCH-40 (.375)
|
|
3" IPS( 3.500"O. D.)
|
|
|
SCH 5, 10, 40, 80, 160, XXH
|
Titanium Gr 5 Pipe Pressure Rating Chart
| Pipe O.D. (in.) |
Wall Thickness of Pipe (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Chemical Composition of Gr 5 Titanium Seamless Pipe
| Titanium Gr 5 | C | Ti | N | Fe | H | O | V | Al |
|---|---|---|---|---|---|---|---|---|
| 0.10 max | 90 min | 0.05 max | 0.40 max | 0.015 max | 0.20 max | 3.5-4.5 | 5.5-6.75 max |
Titanium Gr 5 Welded Pipe Mechanical Behaviour
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Equivalent of Titanium Alloy Gr 5 Round Pipe
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Titanium Gr 5 | R56400 | 3.7165 |
Gr 5 Alloy Hollow Pipe Testing and Documentation
- Micro and MacroTest
- Positive Material Identification – PMI Testing
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Pitting Resistance Test
- Mechanical Testing Such as Tensile of Area
Surface Finish of Titanium WERKSTOFF NR. 3.7165 Pipe
| Surface Finish | Internal Surface(ID) | Exterbal Surface(OD) | |||
|---|---|---|---|---|---|
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μ inch | μm | μ inch | μm | ||
| AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
| BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| EP | Electro Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |
UNS R56400 Welded Pipe Size
| Titanium Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
