Titanium Pipe Flanges Manufacture, Supplier and Exported in India
Amardeep Steel is a leading Titanium Flanges Supplier, specializing in providing high-quality titanium flanges for various industries worldwide. Our titanium flanges are made using premium titanium alloys and commercially pure titanium grades, ensuring exceptional strength, durability, and resistance to corrosion.
What are Titanium Flanges?
Titanium Flanges are made up of various titanium alloys and commercially pure titanium grades. There are various uses for the almost 40 grades of titanium. Titanium flanges, which are produced in accordance with ASTM B381 specifications, are extensively utilized in sectors like power generation, chemical processing, maritime, and aerospace. Titanium flanges are best suited for applications requiring high performance in extreme environments because they give strength and are lightweight. The Titanium Pipe Flanges are used to connect pipes together with extra strength because they have raised or flat surfaces that can allow for maximum grip.
Types of Titanium Flanges
Our extensive selection of titanium flanges, which are all made to satisfy certain industrial needs, includes Slip-On Flanges, Weld Neck Flanges, Threaded Flanges, Titanium Blind Flanges, Titanium Pipe Flanges, and Spectacle Blind Flanges.
Titanium Blind Flanges
Titanium Blind Flanges serve as a versatile option for maintenance, allowing users to easily open or close piping systems when required. Our Titanium Blind Flanges are used to securely close pipe ends, providing a permanent or temporary seal for maintenance or system modifications. In contrast, the raised or flat surfaces of titanium pipe flanges guarantee maximum grip and robust couplings.
Titanium Slip On Flanges
The Slip-On Flanges are designed for easy installation, allowing precise pipe alignment by slipping onto the pipe. The solid solution alloy used to make our Titanium Slip On Flanges (UNS R50400) can only be hardened by cold working. For these flanges, a variety of welding techniques are advised, including submerged-arc welding, metal-arc welding, gas-metal-arc welding, and gas-arc welding.

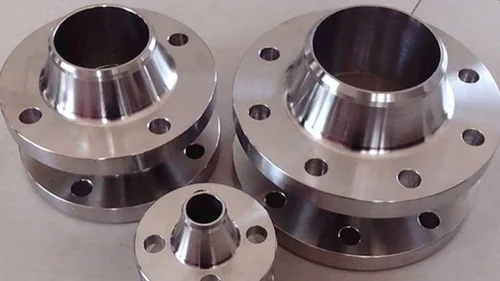

Titanium Weld Neck Flanges
Titanium Weld Neck Flanges provide extra strength for high-pressure and high-temperature applications. We use heavy-duty machining equipment and tooling to minimize chatter or work-hardening of the alloy ahead of cutting.
Titanium Threaded Flanges
We offer Titanium Threaded Flanges with female threads that ensure a secure connection without welding. Our Titanium Threaded Flanges are highly sought after for their exceptional performance and ease of fabrication.
Titanium Socket Weld Flanges
Titanium Socket Weld Flanges are modern, made from high-performance alloys that benefit from double melting through the Electro Slag Refining (ESR) process, ensuring the cleanest and highest quality product.
Titanium Ring Type Joint (RTJ) Flanges
Our Titanium Ring Type Joint (RTJ) Flanges are precision-engineered for high-pressure applications and ensure leak-proof sealing in extreme conditions. Although post-weld heat treatment is usually not necessary for these flanges, careful cleaning is necessary to avoid contamination and embrittlement and to guarantee the best possible corrosion resistance.
Our titanium flanges are well-known for their ability to withstand acids, alkalis, and seawater, and they function remarkably well under challenging conditions. Because titanium flanges are strong and lightweight, they can tolerate high temperatures and pressures, which makes them ideal for demanding uses in chemical plants, offshore marine systems, and aerospace equipment. Titanium flanges come in a range of diameters and shapes to suit different industrial requirements, with nominal bore sizes spanning from ½ inch to 48 inches.
At Amardeep Steel, we prioritize quality and precision, subjecting all our titanium flanges to rigorous testing and quality checks to meet global standards. With a commitment to delivering on time and meeting the unique requirements of our customers, we have earned a reputation as a trusted Titanium Flanges Manufacturer. Contact us today to learn more about our Titanium Product range, pricing, and how our titanium flanges can meet your industrial needs.
Titanium Forged Fittings Specification
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | tdreaded / Screwed / Forged / Plate |
| Production technique | Forged, Heat treated and machined |
| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
Titanium Flanges Chemical Composition
| Grade | C | N | O | H | Ti | Fe |
| Titanium Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | bal | 0.30 max |
| Titanium Gr 5 | 0.10 max | 0.05 max | 0.20 max | 0.015 max | bal | 0.40 max |
Titanium Flanges Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Gr.2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Titanium Flanges Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Titanium Gr 5 | 3.7165 | R56400 |
ASTM B381 Titanium Flanges Available Types & Shapes
| Titanium Slip on Flanges | Titanium SORF Flanges |
| Titanium Gr. 5 Long Weld Neck Flanges | Titanium Forged Flanges |
| Titanium CF Flange | Titanium MAF Flange |
| Titanium Flanges | Titanium Gr. 2 Socket weld Flanges |
| Titanium Turbo Flange | Titanium Tial Flange |
| Titanium Gr. 2 Orifice Flange | ANSI Titanium Blind Flange |
| Titanium Flat Flange | Titanium UNS R50400 Flanges |
| Titanium BS 4504 Flanges | Titanium Threaded Flanges |
| Titanium Reducing Flanges | Titanium Ring Type Joint Flanges |
| DIN 3.7035 Weld Neck Flanges | Titanium Spectacle Blind Flanges |
| Titanium WNRF Flange | Titanium EN 1092-1 Flanges |
| Titanium Tongue & Groove Flanges | Titanium Screwed Flanges |
| ASTM B381 Titanium Lap Joint Flanges | ASME SB381 Titanium BLRF Flange |
| Titanium Raised Face Flanges | Titanium ASME B16.5 Flanges |
| Titanium Square Flanges | ASME SB381M Titanium SWRF Flange |
| ANSI B16.5 Titanium RTJ Flanges | Titanium Male & Female Flanges |
| Titanium DIN 3.7165 Flanges | Titanium Nipo flange |
Titanium Flange Weight Chart
|
Standard
|
Class
|
Diameter
|
Bolt Circle Diameter
|
Number of Bolts
|
Bolt Size
|
Diameter of Bolt Hole
|
|---|---|---|---|---|---|---|
|
AS4087 Flanges
|
PN14 Flanges
|
95
|
67
|
4
|
M12
|
14
|
|
AS 2129 Flange
|
Table C Flanges
|
95
|
67
|
4
|
13
|
14
|
|
Table D Flanges
|
95
|
67
|
4
|
13
|
14
|
|
|
Table E Flanges
|
95
|
67
|
4
|
13
|
14
|
|
|
Table F Flanges
|
95
|
67
|
4
|
13
|
14
|
|
|
Table H Flanges
|
114
|
83
|
4
|
16
|
17
|
|
|
Table J Flanges
|
114
|
83
|
4
|
16
|
17
|
|
|
ANSI B16.5 Flanges
|
ANSI 150 Flanges
|
89
|
60
|
4
|
13
|
16
|
|
ANSI 300 Flanges
|
95
|
67
|
4
|
13
|
16
|
|
|
ANSI 600 Flanges
|
95
|
67
|
4
|
13
|
16
|
|
|
ANSI 900 Flanges
|
121
|
83
|
4
|
19
|
22
|
|
|
ANSI 1500 Flanges
|
121
|
83
|
4
|
19
|
22
|
|
|
ISO 7005 (DIN) Flange
|
PN6 Flanges
|
80
|
55
|
4
|
M10
|
11
|
|
PN10 Flanges
|
95
|
65
|
4
|
M12
|
14
|
|
|
PN16 Flanges
|
95
|
65
|
4
|
M12
|
14
|
|
|
PN20 Flanges
|
90
|
60.5
|
4
|
M14
|
16
|
|
|
PN25 Flanges
|
95
|
65
|
4
|
M12
|
14
|
|
|
PN40 Flanges
|
95
|
65
|
4
|
M12
|
14
|
Titanium Flanges Standards / Types and Pressure Class
| ASME/ANSI B 16.5 | Slip on Flange, Welding Neck Flange, High Hub Blind Flange, Blind Flange,Lap Joint Flange, Socket Weld Flange, Ring Type Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B], Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Welding Neck Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Hubbed Slip on Flange, Welding Neck Flange, Lapped Pipe End Flange, Hubbed Threaded Flange, Loose Plate Flange, Plate Flange, Blank Flange, Loose Plate With Weld Neck Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Plate Flange, Hubbed Slip-On Hubbed Threaded,Blank Flange, Loose Plate With Weld On Plate Collar |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Socket Welding Flange, Welding Neck Flange, Blind Flange, Slip-On Flange, Lapped Flange, Screwed Boss Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Welding Neck Flange, Slip-On Boss Flange, Screwed Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Others Types of Titanium Flanges
| Flange Schedule/Class | Pipe Size - Pipe Flanges | Flange Connection Type | Flange Material | Max. Pressure |
|---|---|---|---|---|
| ASME B16.5 Class 150 | 1/2" | FNPT | Titanium | 150 psi |
| ASME B16.5 Class 150 | 1/2" | Socket Weld | Forged Titanium | 275 psi |
| ASME B16.5 Class 150 | 1/2" | Welded | Titanium | 150 psi |
| ASME B16.5 Class 150 | 3/4" | FNPT | Titanium | 150 psi |
| ASME B16.5 Class 150 | 3/4" | Socket Weld | Forged Titanium | 275 psi |
| ASME B16.5 Class 150 | 1-1/4" | Socket Weld | Forged Titanium | 275 psi |
| ASME B16.5 Class 150 | 1-1/2" | Socket Weld | Forged Titanium | 275 psi |
| ASME B16.5 Class 150 | 2" | FNPT | Titanium | 150 psi |
| ASME B16.5 Class 150 | 2" | Socket Weld | Forged Titanium | 275 psi |
| ASME B16.5 Class 150 | 2-1/2" | Socket Weld | Forged Titanium | 275 psi |
| ASME B16.5 Class 150 | 3" | Socket Weld | Forged Titanium | 275 psi |
| ASME B16.5 Class 150 | 4" | FNPT | Titanium | 150 psi |
| ASME B16.5 Class 150 | 4" | Socket Weld | Forged Titanium | 275 psi |
| ASME B16.5 Class 300 | 1/2" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 1/2" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 1" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 1" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 1-1/4" | FNPT | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 1-1/4" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 1-1/2" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 1-1/2" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 2" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 2" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 2-1/2" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 2-1/2" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 3" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 3" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 4" | Slip On | Forged Titanium | 720 psi |
| ASME B16.5 Class 300 | 4" | Slip On | Forged Titanium | 720 psi |
Titanium Flanges and Their Applications Across Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
Why Choose us for Titanium Flanges?
At Amardeep Steel, we offer high-quality titanium flanges backed by:
- Advanced Manufacturing – Precision engineering using modern equipment to meet ASTM/ASME standards.
- Global Reach – Efficient worldwide supply and quick turnaround for urgent requirements.
- Certified Quality – ISO 9001, EN 10204, NACE, and NABL-approved testing ensure reliable performance.
- Custom Solutions – Tailored sizes, grades, and finishes delivered on time to meet your project needs.
FAQs
1. Who is the manufacturer of titanium flanges in India?
Amardeep Steel is a specialized manufacturer, supplier & stockist of Titanium Long welding neck flanges, Socket welds, Threaded, Loose, Plain Welding flanges, or any other Titanium Orifice flanges required for any fabricated pipelines.
2. What is the HS code for titanium flange?
The HS code for titanium flanges is typically 73072100, covering flanges made of stainless steel, including titanium alloys. Related fittings may fall under 73071900 or 73072900, depending on the type. For fittings used in furniture, doors, or similar applications, the HS code 8302 applies.
3. What is titanium mainly used for?
These alloys are mainly used in aircraft, spacecraft, and missiles because of their low density and ability to withstand extremes of temperature. They are also used in golf clubs, laptops, bicycles and crutches. Power plant condensers use titanium pipes because of their corrosion resistance.
