Titanium Buttweld Fittings are components used to connect sections of pipe and facilitate changes in direction, size, or flow within a piping system. Made from titanium, these fittings are known for their exceptional strength, lightweight nature, and outstanding resistance to corrosion and high temperatures.
ASTM B363 Titanium Buttweld Fittings, known for their lightweight yet durable properties. These fittings exhibit significant tensile strength and toughness at extremely high temperatures. Our UNS R50250 Titanium Buttweld Pipe Caps are designed to perform well in corrosive environments
and handle constant fluctuations or vibrations, such as those found in pressure vessels and heat exchangers. Despite their strength, Titanium Buttweld DIN 3.7035 Seamless Fittings remain soft and ductile, crafted from the purest titanium. This quality makes our WNR 3.7165 Titanium Buttweld Pipe Elbows easy to form into various sizes, enhancing their versatility for different applications.
Titanium Gr. 1 and Gr. 2 Buttweld Fittings, which are known for their excellent weldability. Our range of Titanium ASTM B366 Pipe Fittings includes various types such as Titanium Tees, Titanium Gr. 2 End Pipe Caps, Titanium Gr. 5 Reducers, Titanium Gr. 5 Crosses, Titanium Elbows, and Titanium Gr. 2 Stub Ends. These fittings are designed to meet diverse piping needs and ensure reliable performance in challenging environments.
Titanium Buttweld Fittings Supplier
Amardeep Steel is a supplier of Titanium Buttweld Pipe Fittings in various forms, types, specifications, and dimensions. These fittings can be alloyed with other elements to create different grades of Titanium Alloys. Titanium Buttweld Pipe Fittings are particularly useful for larger diameter pipes with bore diameters greater than 2 inches.
Titanium is a naturally occurring metal known for its high tensile strength, durability, and excellent corrosion resistance across a wide range of corrosive environments. the modern warehouse stocks various types of Titanium Buttweld Pipe Fittings, including Titanium Reducer Fittings, Titanium End Caps, Titanium Elbows, Titanium Tees, Titanium Stub Ends, Crosses, and more. These fittings are essential for ensuring secure and reliable connections in piping systems, making them ideal for industries requiring robust and corrosion-resistant solutions.
Titanium Buttweld Pipe Fittings Specification
| Titanium Butt weld Fittings Dimensions | ASME B16.9, ASME B16.28, ANSI B16.9, MSS-SP-43 |
| Titanium Fittings Standard | ASTM B363 / ASME SB363 |
| Titanium Pipe Fittings Grades | Titanium Gr 2, Gr5, Gr 7 |
| ASME SB363 Titanium Welded Fittings Size | 1/2" NB To 48" NB |
| ASTM B363 Titanium Seamless Fittings Size | 1/2" NB To 10" NB |
| Titanium Pipe Fitting Size | 1/8" NB TO 48" NB (Seamless, 100% X-Ray Welded, Fabricated) |
| Type of Titanium Pipe Fittings | Fabricated Fittings, Welded Fittings, Seamless Fittings |
| Titanium Pipe Fittings Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Specialized manufacturer of Titanium Pipe Fittings | Stub End, Pipe Cap, Elbow, 90Deg Elbows, 45Deg Elbows, Tees, Reducer, Cross, Pipe Bend |
| ASTM B363 Titanium Butt weld Fittings Form | Unequal Tee, Lateral Tee, Tee, Elbow, 90 Deg Elbow, 10d Elbow, Long Radius Elbow, 45 Deg Elbow, 180 Deg Elbow, Short Radius Elbow, 1.5d Elbow, 5d Elbow, 3d Elbow, Reducing Elbow, Reducing Tee, Long Stub End, Bends, Reducer, Cross, End Cap, Piggable Bend, Reducing Nipple, Concentric Reducer, Short Stub End, Eccentric Reducer, Dish Cap, 180 Deg Bend, Collar, U Bend, Equal Tee, etc |
| Titanium Butt weld Pipe Fittings Origin and Mills | Japanese Origin, Indian Origin, Korea Origin, Thailand Origin, European Origin, US Origin, Taiwan Origin |
| Titanium Pipe Fittings Connection | Welding Connection |
| ASTM B363 Titanium Pipe Fittings Supply Area | Indonesia, United States, Malaysia, India, Kuwait, UAE, Qatar, Iran, Singapore, Germany, Bahrain, Netherlands, Mexico, Iraq, Saudi Arabia, USA, Turkey |
| Titanium Butt weld Pipe Fittings Schedule | SCH10, SCH20, SCH30, SCH40, SCH60, SCH80, SCH120, SCH140, SCH160, STD, XS, XXS |
Titanium Buttweld Fittings Chemical Composition
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | - | - |
| Ti Grade5 | 90 min | - | 0.25 max | - | - | 0.2 max | 6 min | 4 min |
Titanium Buttweld Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
ASME SB363 Titanium Buttweld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Titanium Gr. 5 | 3.7165 | N56400 |

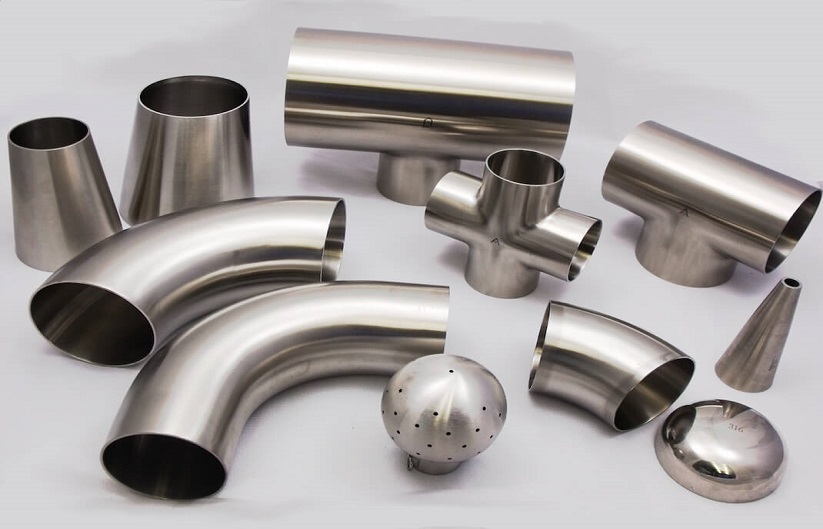

Types of Titanium Buttweld Fittings
- Titanium Alloy Elbow
- Titanium 45 Deg Elbow
- Titanium Alloy 90 Deg Elbow
- Titanium Reducing Tee
- Titanium Alloy Tee
- Titanium Equal Tee
- Titanium Alloy Equal Cross
- Titanium Reducing Cross
- Titanium Alloy Reducer
- Titanium End Cap
- Titanium Alloy Nipple
- Titanium Union
- Titanium Alloy Plug
- Titanium Buttweld Fittings
Titanium Flanges Application
- Oil and Gas Pipelines
- Chemical Industry (ASTM B363)
- Plumbing (Titanium Gr. 2)
- Heating (Titanium Gr. 5)
- Water Supply Systems (ASTM B363)
- Power Plants (ASTM B363)
- Paper & Pulp Industry
- General Applications
- Fabrication Industry (ASME SB363)
- Food Processing (Titanium Gr. 5)
- Structural Pipe
