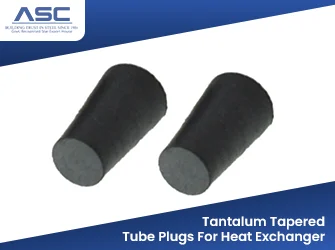

We stock a massive inventory of these Tantalum Tapered Plugs for Heat Exchangers, and offer these Tantalum Tapered Plugs of different sizes and materials For Tubes Having Od Of 1/4″ Up to 4”. We can even offer customized sizes as per the client’s requirements. Amardeep Steel Centre is well-known for providing high-quality Tantalum tapered tube plugs and for its brisk and timely delivery. We export and supply Tantalum tapered plugs everywhere in the world. The uniform taper and the smooth surface finish of Tantalum Plugs assure positive sealing with minimum installation force. Tantalum Tapered Tube Plugs For Heat Exchangers are used to Sealing the Leaking Tubes In Heat Exchangers, Condensers, Boilers, Coolers, R05200 Tantalum Tubes, R05252 Tantalum Tubes, R05400 Tantalum Tubes, R05240 Tantalum Tubes & R05255 Tantalum Tubes, etc. Tantalum Tapered Tube plugs are used extensively in heat exchangers. Tantalum Tapered Tube Plugs offer low-cost maintenance and the fastest method to seal the leaking tubes. Our Tantalum Tapered Plugs For R05200 Tubes, R05252 Tubes, R05400 Tubes, R05240 Tubes & R05255 Tubes are exported all over the world, we even take into account the small requirements of our clients.
| R05200 Tantalum Tapered Tube Plugs | R05252 Tantalum Tapered Tube Plugs |
| R05400 Tantalum Tapered Tube Plugs | R05240 Tantalum Tapered Tube Plugs |
| R05255 Tantalum Tapered Tube Plugs |
These Tantalum Tapered Tube Plugs are available in different sizes and materials for Tubes having Od Of 1/4″ Up to 4”. We can even offer customized sizes for Tantalum plugs as per the client’s requirement.
| Tantalum Tapered Tube Plugs – Tube Plug Sizing Chart | ||||
| Tube OD | Gauge | Dimension (Inches) | ||
| “A”Small End | “B”Large End | “L”Length | ||
| 1/4″ | 18-24 | 0.141″ | 0.235″ | 1-1/4″ |
| 3/8″ | 12-24 | |||
| 3/8″ | 15-24 | 0.213″ | 0.371″ | 1-3/4″ |
| 1/2″ | 13-15 | |||
| 1/2″ | 15-24 | 0.337″ | 0.495″ | |
| 5/8″ | 12-14 | |||
| 5/8″ | 14-24 | 0.449″ | 0.625″ | |
| 3/4″ | 10-14 | |||
| 3/4″ | 14-24 | 0.564″ | 0.750″ | |
| 7/8″ | 10-13 | |||
| 1″ | 8-9 | |||
| 7/8″ | 15-24 | 0.706″ | 0.875″ | |
| 1″ | 10-15 | |||
| 1″ | 13-18 | 0.776″ | 0.934″ | |
| 1″ | 18-24 | 0.892″ | 1.050″ | |
| 1-1/8″ | 13-17 | |||
| 1-1/8″ | 15-24 | 0.949″ | 1.125″ | 2″ |
| 1-1/4″ | 10-14 | |||
| 1-1/4″ | 13-19 | 1.010″ | 1.186″ | |
| 1-1/4″ | 19-24 | 1.147″ | 1.323″ | |
| 1-1/2″ | 10-24 | 1.200″ | 1.495″ | 3″ |
| 1-1/2″ | 14-24 | 1.305″ | 1.600″ | |
| 1-3/4″ | 6-13 | |||
| 1-3/4″ | 14-22 | 1.575″ | 1.870″ | |
| 2″ | 6-13 | |||
| 2″ | 12-22 | 1.700″ | 1.995″ | |
| 2-1/4″ | 6-13 | 1.805″ | 2.100″ | |
| 2-1/2″ | 5-18 | 2.000″ | 2.375″ | |
| 2-3/4″ | 4-10 | 2.232″ | 2.500″ | |
| 3″ | 5-12 | 2.524″ | 2.834″ | 4″ |
| 3″ | 10-23 | 2.625″ | 3.000″ | |
| 3-1/4″ | 7-14 | 2.875″ | 3.125″ | |
| 3-1/4″ | 13-23 | 3.010″ | 3.250″ | |
| 3-1/2″ | 7-12 | 3.125″ | 3.375″ | |
| 3-1/2″ | 13-23 | 3.260″ | 3.500″ | |
| 3-3/4″ | 5-12 | 3.274″ | 3.567″ | |
| 3-3/4″ | 13-23 | 3.510″ | 3.750″ | |
| 4″ | 5-12 | 3.524″ | 3.817″ | |
| 4″ | 13-23 | 3.782″ | 4.000″ | |
