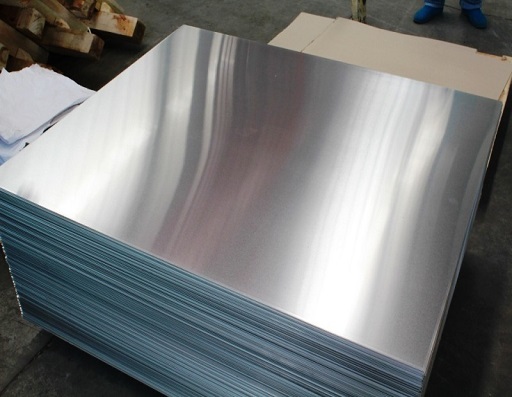

Amardeep Steel is a leading supplier of Niobium sheets, which are cold-rolled and vacuum-annealed and made from high-quality Niobium. Known for its exceptional properties, Niobium is commonly used in advanced applications such as superconductors, supercolliders, and super coolers, especially in particle acceleration technologies. We provide Niobium Plates in various grades, dimensions, and forms, including coils, foils, and strips, tailored to meet the specific needs of high-end industrial applications. Amardeep Steel ensures reliable supply and superior quality for all your niobium material requirements.
Due to their high performance and durability, UNS R04210 Pure Niobium Plates are widely used in nuclear reactors and particle accelerators. Niobium plates are essential in the production of nickel-based superalloys and superconductors. We offer Niobium Alloy Strips and sheets in different grades, including Type 1 (Reactor Grade), with a maximum impurity level of 0.1%, and Type 2 (Commercial Grade), allowing up to 0.2% impurities. Available in thicknesses ranging from 0.006 inches to 0.1875 inches.
Niobium Sheets and Strips are known for being highly flexible, superconductive, and very resistant to corrosion. They are also safe to use in medical applications. Due to their strength and durability, these materials are often used in making industrial diamonds, deep drawing processes, and in the chemical and medical industries.
Explore our high-quality Niobium products, such as pipes, tubes, flanges, and fittings, designed for outstanding durability and resistance to corrosion.
Niobium Sheet Specification
| Grade | Nb1,NbZr,R04200 |
|---|---|
| Standard | ASTM B393-05 |
| Purity | 99.95% |
| Characteristic | Melting Point:2468 Degrees Celsius |
| Boiling Poin:4742 Degrees Celsius | |
| Certification | ISO9001, ISO14001, CE |
| Size | Thick 0.1mm min.W680mm max. L3000mm max |
| Applications | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| Product Feature | High melting point, high-density, high temperature oxidation resistance, long service, resistance to corrosion. |
Niobium Sheet Chemical Composition
| Composition% | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Main Content | Impurities (no more than %) | ||||||||||
| Nb | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N | |
| R04200 | Remaining | 0.004 | 0.004 | 0.002 | 0.005 | 0.005 | 0.002 | 0.05 | 0.012 | 0.0035 | 0.0012 | 0.003 |
| R04210 | Remaining | 0.01 | 0.01 | 0.005 | 0.02 | 0.01 | 0.004 | 0.07 | 0.015 | 0.0050 | 0.0015 | 0.005 |
Niobium Sheet Mechanical Properties
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) |
Yield Strength Minimum, psi (MPa) |
Elongation in 1-inch | |
|---|---|---|---|---|
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
Dimensions Chart of Niobium Sheet
| Niobium Foil | 0.001” to 0.006” thick by widths up to 12” wide |
|---|---|
| Niobium Sheet | 0.006” to 0.1875” thick by widths up to 40” wide |
| Niobium Plate | 0.1875” to 1” thick in common widths |
Tolerance chart of Niobium Sheet
| Thickness | Thickness Tolerance | Width | Width Tolerance |
Length | Length Tolerance |
|
|---|---|---|---|---|---|---|
| Grade 1 | Grade 2 | |||||
| 0.025 - 0.1 | 0.005 | 0.008 | 50 - 150 | 2.0 | 100 - 20 000 | 2.0 |
| 0.1 - 0.2 | 0.015 | 0.02 | 50 - 240 | 2.0 | 100 - 20 000 | 2.0 |
| > 0.2 - 0.3 | 0.02 | 0.03 | 50 - 650 | 2.0 | 100 - 6 000 | 2.0 |
| > 0.3 - 0.5 | 0.03 | 0.04 | 50 - 650 | 2.0 | 100 - 6 000 | 2.0 |
| > 0.5 - 0.8 | 0.04 | 0.06 | 50 - 650 | 2.0 | 100 - 6 000 | 2.0 |
| > 0.8 - 1.0 | 0.06 | 0.08 | 50 - 650 | 2.0 | 100 - 6 000 | 2.0 |
| > 1.0 - 1.5 | 0.08 | 0.12 | 50 - 650 | 3.0 | 100 - 6 000 | 4.0 |
| > 1.5 - 2.0 | 0.12 | 0.16 | 50 - 650 | 3.0 | 100 - 4 000 | 4.0 |
| > 2.0 - 3.0 | 0.16 | 0.18 | 50 - 650 | 5.0 | 100 - 4 000 | 5.0 |
| > 3.0 - 4.0 | 0.18 | 0.20 | 50 - 650 | 5.0 | 100 - 3000 | 5.0 |
| > 4.0 - 6.0 | 0.20 | 0.24 | 50 - 650 | 5.0 | 100 - 2000 | 5.0 |
