AMARDEEP STEEL CENTRE is one of the leading Manufacturers, Supplier and Exporters of Forged Threaded Elbow using high quality raw materials. These Threaded Elbow are used in various application industry. These are also offered in accordance with the national and international standard & specifications. A pipe Threaded Elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction. These Threaded Pipe Fittings Elbow provide permanent welded connections for critical applications. These Elbow available in ifferent size, grades, specification & thickness as per the clients requirments.
| Standards | : | ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799 |

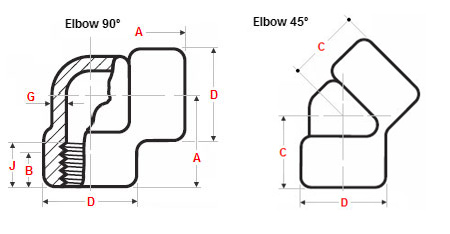

| Dimension | : | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | : | 1/8″~4″ (DN6~DN100) |
| Class | : | 2000LBS, 3000LBS, 6000LBS |
| Type | : | Threaded |
| Form | : | 45 Deg Elbow, 90 Deg Elbow, Any required deg. |
Stainless Steel Threaded Elbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Carbon Steel Threaded Elbow :
ASTM / ASME A 234 WPB, WPC. ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Threaded Elbow :
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Nickel Alloy Threaded Elbow :
ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Duplex & Super Duplex Steel Threaded Elbow :
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Copper Alloy Steel Threaded Elbow :
ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
