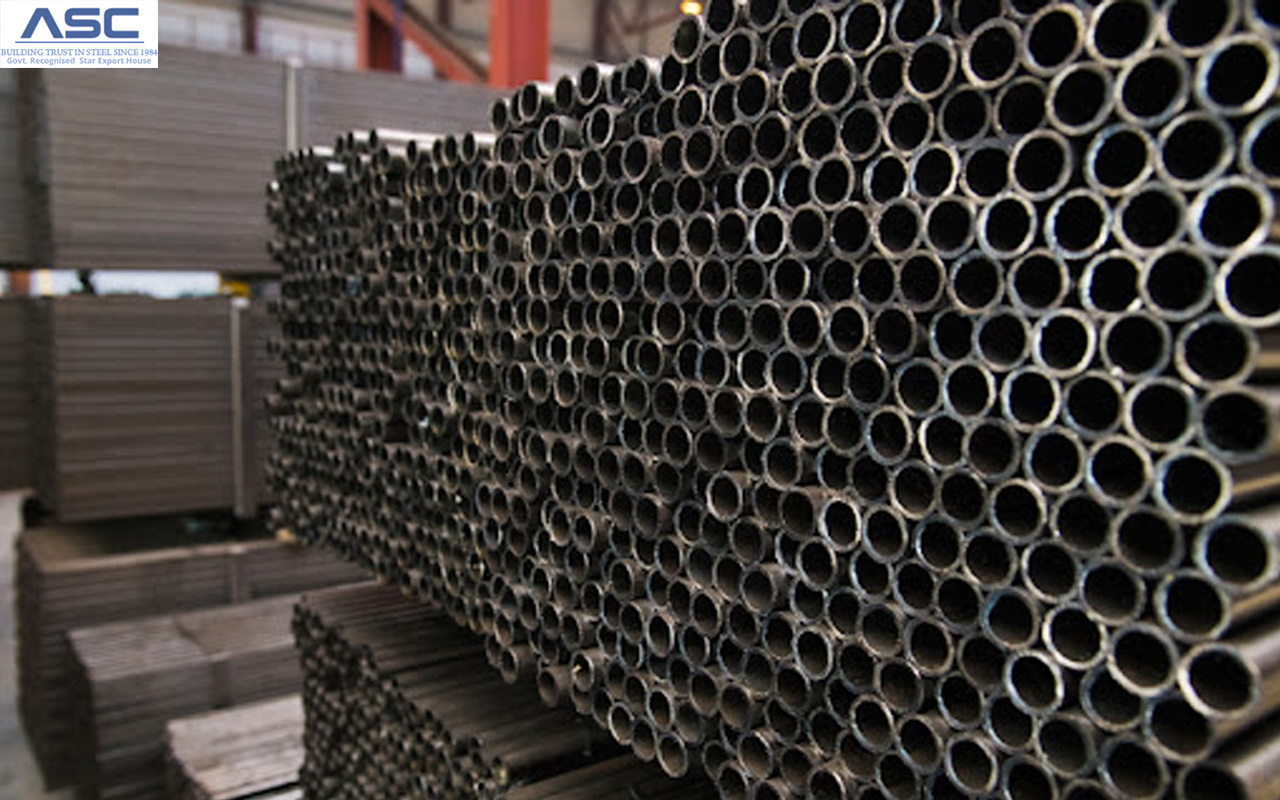

SAE J356 Welded Hydraulic Tubing, Low Carbon Steel Tubing, SAE J356 Tubing
Electric resistance welded, flash controlled, normalised, single wall, low carbon steel pressure tubing is covered by this specification. It is designed for use in pressure lines and other applications that require tubing that may be bent, double flared, beaded, formed, and brazed. Due to the probable leak path generated by the ID weld bead, material produced to this specification is not designed for single flare applications.
SAE J356 Type-A refers to small diameter light wall tubing (usually 5/8" OD x 18Ga and less) that is
annealed "in line," as opposed to J356, where normalising is done separately. The performance
requirements for Type-A tubes are the same as those for J356 tubes, although the chemical
composition ranges for Carbon and Manganese are wider. Type-A tubes are frequently manufactured in
coil form, however they can be cut and straightened using secondary procedures.
A single strip of steel is formed into a tubular shape via electric resistance welding. Welding
procedures or cutting are used to control the interior flash after welding. Ductility and homogeneous
grain structure are produced through on-line annealing. Normalized electric resistance welded low carbon
steel pressure tubing is designed for use as pressure lines and other applications requiring tube of a
quality appropriate for bending, double flaring, beading, and brazing. Mechanical characteristics and
performance standards for SAE J356 Type-A and Type-B are the same. According to SAE J356 or SAE J356
Type-A, coiled and straight material are made differently. ISO 10763 lists nominal reference working
pressures for metric tubing and SAE J1065 lists nominal reference working pressures for inch tubing.
During the secondary heat treat procedure, SAE J356 is produced in straight lengths. SAE J356 Type-A
tubing is heat treated in-line to relieve stress.
SAE J356 Tube Specification
| Dimensions | ASTM |
|---|---|
| Specialized Supplier in | Large Diameter Size |
| Seamless Tube | 4 to 219mm |
| W. T | 0.5 to 20mm |
| Size | 15″NB TO 150″NB IN |
| Schedule | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
| Testing Provided | H2 SERVICE, NACE TM0177, NACE TM0284, SSC TEST, NACE MR0175, HIC TEST, IBR, etc. |
| Available Type | Seamless / ERW / Welded / Fabricated / LSAW |
| Form | Round, Hydraulic Etc |
| End | Plain End, Beveled End, Treaded |
| Length | Single Random, Double Random & Cut Length. |
SAE J356 Tube Chemical Requirements
| Element | Cast or Heat Analysi Weight % | |
|---|---|---|
| J356 | J356 Type-A | |
|
Carbon
|
0.06 Min/0.18 Max
|
0.02 Min/0.18 Max
|
|
Manganese
|
0.30 Min/0.60 Max
|
0.10 Min/0.60 Max
|
|
Phosphorus
|
0.04 Max
|
0.04 Max
|
|
Sulfur
|
0.06 Max
|
0.05 Max
|
SAE J356 Tube Mechanical Properties -
| Properties | Values |
|---|---|
| Yield Strength (Min) | 25,000 PSI |
| Tensile Strength (Min.) | 45,000 PSI |
| Elongation in 2” (Min) | 35% a |
| Hardness (Rockwell B)(Max) | 65 b |
SAE J356 Tube Applications
• Hydraulic Components
• Transmission Components
• Steering Components
• Agriculture & Heavy Equipment Couplings and Fittings
• Off-Highway Vehicles
• Process and Utility Industry Hydraulic Lines
Welded Flash Controlled Low Carbon Steel Tubing
SAE J356 Tube manufactured from a single strip of steel shaped into a tubular form by electric resistance welding. Welding techniques or cutting are used to keep the inside flash under close control after welding. On-line annealing gives the metal a uniform grain structure and makes it more flexible all around. This standard applies to normalised electric resistance-welded flash-controlled single-wall low-carbon steel pressure tubing that is meant to be used as pressure lines and in other situations where tubing that can be bent, double-flared, beaded, and brazed is needed.
| TUBING OUTSIDE DIAMETER TOLERANCES, INCHES | |||
|---|---|---|---|
|
Nominal Tubing OD |
Tolerance ± |
Nominal Tubing OD |
Tolerance ± |
| Thru 0.375 | 0.0025 | Over 2.000-2.500 | 0.006 |
| Over 0.375-0.625 | 0.003 | Over 2.500-3.000 | 0.008 |
| Over 0.625-1.125 | 0.0035 | Over 3.000-3.500 | 0.009 |
| Over 1.125-2.000 | 0.005 | Over 3.500-4.000 | 0.010 |
| TUBING FLASH TOLERANCES, INCHES | ||
|---|---|---|
| Nominal Wall Thickness | Nominal Tubing Outside Diameter | |
| Thru 1.000 | Over 1.000 | |
| Maximum Flash Height | ||
| Thru 0.035 | 0.005 | 0.010 |
| Over 0.035 thru 0.065 | 0.008 | 0.010 |
| Over 0.065 | 0.010 | 0.010 |
| MECHANICAL PROPERTIES | |
|---|---|
| Yield strength, minimum | 25,000 psi |
| Ultimate strength, minimum | 45,000 psi |
| Elongation in 2 inches, minimum | 35 percent |
| Hardness (Rockwell B), maximum | 65b |
Other types of SAE J356 Tube
| J356 Hydraulic Tube | SAE J356 Tube |
| J356 Welded Hydraulic Tubing | SAE J356 Hydraulic Tubing |
| J356 Tubing | SAE J356 Steel Tubing |
| SAE J356 DOM Tubing | SAE J356 Hydraulic Tube |
| C1010 Hydraulic line tubing | AISI C1010 DOM Tube |
| C1010 Steel DOM Welded Tube | SAE J356 Steel Welded Hydraulic Tubing |
| C1010 J356 Hydraulic Tubing | C1010 SAE J356 Welded and Cold-drawn Steel |
