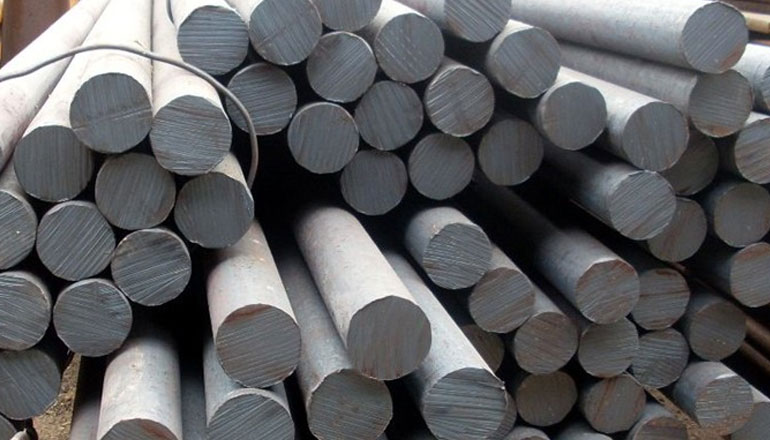

SAE 1541 Carbon Steel Round Bar is widely used in the metallurgical, mechanical, electrical construction field, ships, military uses, and automobile rear of products. As a leading Stockists of SAE 1541 Carbon Steel Round Bar we offer a wide range of these products such as Mild Steel Round Bars, Alloy Steel Round Bars, Bearing Steel Round Bars, Free Cutting Steel Round Bars, and Carbon Steel Round Bars.
Grade SAE 1541 is a medium carbon combination steel. The content of manganese in this combination is critical and further develops the mechanical properties related to this medium carbon-containing SAE 1541 Steel Pipe. As an alloying component, manganese, when added to the combination, improves properties like strength, hardness, and hardenability. Manganese additionally further develops the scraped area obstruction properties of SAE 1541 Steel Round Bar, along these lines, making it appropriate for high-pressure applications like mining.
Generally, the inclination of SAE 1541 Seamless Tube for Minning is on the grounds that it costs lower than numerous hardened steel grades and it is solid. Albeit this compound contains a few measures of phosphorus and sulfur, these two components are viewed as pollutions present in the amalgam. With the carbon and manganese being the main prominent components used to amalgam the SAE 1541 carbon steel consistent line, the expense is significantly diminished. Our A513 1010 Carbon Steel Tubes undergo several tests such as Hardness Test, Flattening Test, Flaring Test, Flange Test, And Hydrostatic Before They Are Stocked And Supplied To Our Clients. Our offered SAE 1541 Carbon Steel Round Bar item range incorporates Mild Steel Round Bars, Alloy Steel Round Bars, Bearing Steel Round Bars, Free Cutting Steel Round Bars, and Carbon Steel Round Bars.
Component | Weight % |
C | Max 0.44 |
Fe | 97.82 – 98.29 |
Mn | 1.35-1.65 |
P | Max 0.040 |
S | Max 0.050 |
Mechanical Properties | Metric | English | Comments |
Hardness, Brinell | >= 207 | >= 207 | |
Tensile Strength, Ultimate | >= 706.7 MPa | >= 102500 psi | |
Tensile Strength, Yield | >= 600 MPa | >= 87000 psi | |
Elongation at Break | >= 10 % | >= 10 % | in 2 in. (50 mm) |
Reduction of Area | >= 30 % | >= 30 % | |
Modulus of Elasticity | 200 GPa | 29000 ksi | Typical Carbon Steel |
Poissons Ratio | 0.29 | 0.29 | Typical Carbon Steel |
Machinability | 45.00% | 45.00% | Cold Drawn AISI 1212 = 100% |
Shear Modulus | 78.0 GPa | 11300 ksi | Typical Carbon Steel |
Get 1541 Steel Round Bars, Carbon Steel Grade 1541 Round Bar, ASTM A29 1541 Round Bar Stock
Thermal Properties | Metric | English | Comments |
CTE, linear | 12.0 µm/m-°C | 6.67 µin/in-°F | Typical Carbon Steel |
Specific Heat Capacity | 0.470 J/g-°C | 0.112 BTU/lb-°F | Typical Carbon Steel |
Thermal Conductivity | 52.0 W/m-K | 361 BTU-in/hr-ft²-°F | Typical Carbon Steel |
Physical Properties | Metric | English | Comments | Cold Head | Hot Forge | Wire Form |
Density | 7.85 g/cc | 0.284 lb/in³ |
Electrical Properties | Metric | English | Comments | Cold Head | Hot Forged | Wire Form |
Electrical Resistivity | 0.0000170 ohm-cm | 0.0000170 ohm-cm |
