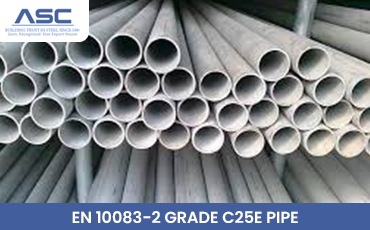

EN 10083-2 Grade C25E Pipe is a medium-carbon steel pipe specified under the EN 10083-2 standard. It contains approximately 0.25% carbon, along with small amounts of silicon, manganese, phosphorus, and sulfur. This composition provides the pipe with a good balance of strength and toughness, making it stronger and harder than low-carbon steels.
C25E pipes are valued for their machinability and weldability, which makes them suitable for various applications requiring moderate to high mechanical stress.
C25E Pipe common uses include manufacturing machinery components, structural parts, and automotive components. Additionally, the C25E steel can be heat treated through processes such as quenching and tempering to further enhance its mechanical properties. Overall, EN 10083-2 Grade C25E Pipes are well-suited for applications demanding improved strength and durability.
Amardeep Steel is a supplier of Carbon Steel EN 10083-2 Grade C25E Pipes and C25E Tubes are designed to withstand harsh environments and high temperatures. Our pipes and tubes, made from quality carbon steel, are available at competitive prices and can be tailored to meet specific client requirements.
Our EN 10083-2 Grade C25E Pipes and Tubes come in various sizes to match client specifications. They are known for their superior quality and durability, making them an excellent choice for connecting pipes and fittings or integrating with other sections of piping systems.
| Specification | Details |
|---|---|
| Material | EN 10083-2 Grade C25E Carbon Steel |
| Product | Seamless Pipes and Tubes |
| Applications | General purpose applications worldwide |
| Characteristics | - Ductile and strong |
| - Long wearing properties | |
| Standard | Manufactured as per EN 10083-2 specification |
| Commercial Reference | Referred to as Carbon Steel Pipes and Tubes |
| Surface Hardness | Not as hard as high carbon steel pipes, but can be increased through carburizing |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| 0.22-0.29 | max 0.40 | 0.40-0.70 | 0.035 | 0.035 | max 0.10 | max 0.40 | max 0.40 | – | – |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 470 | – | – | 22 | ||
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall - 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall - 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 - 80 mmOD > 80 Wall Thickness < 6 mm Wall Thickness6 - 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
|---|---|---|
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
| EN 10083-2 C25E ERW Pipe | EN 10083-2 Gr C25E Lsaw Pipe | EN 10083-2 C25E Dsaw Pipe |
| EN 10083-2 C25E Lsaw Pipe | EN 10083-2 Gr C25E Saw Tubes | EN 10083-2 Grade C25E Round Tube |
| Carbon EN 10083-2 Grade C25E Tubes | ERW EN 10083-2 C25E Tubes | CS EN C25E Seamless Tubes |
| C25E Fabricated Pipes | EN 10083-2 Hydraulic Tubes | EN 10083-2 C25E Hydraulic Pipes |
| Carbon Steel EN C25E Pipes | EN 10083-2 C25E Welded Pipes | EN 10083-2 C25E Seamless Pipes |
| EN 10083-2 C25E Line Pipe | C25E Carbon Welded Tube | EN 10083-2 Seamless Line Pipe |
