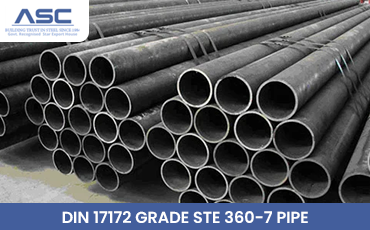

DIN 17172 Grade StE 360-7 is a high-quality carbon steel, commonly known as mild steel (MS). These pipes are made from low carbon steel with a maximum carbon content of 0.22% and manganese content between 0.90% and 1.50%, making them easy to shape and form. Produced according to DIN specifications, these pipes are also known as carbon steel or mild steel pipes.
Amardeep Steel is a leading manufacturer & supplier of DIN 17172 StE 360-7 pipes, containing carbon, silicon, manganese, phosphorus, and sulfur, can achieve a minimum tensile strength of up to 630 MPa. At Amardeep Steel, we manufacture and supply these high-performance pipes, ensuring they meet industry standards and offer reliable performance for various applications. Their excellent weldability and strength make them suitable for demanding conditions.
| Specification | Details |
|---|---|
| Standards | DIN 17172 StE 360.7 Pipe |
| DIN 17172 StE 360.7 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| DIN 17172 StE 360.7 Welded Pipe Size | 5.0 mm – 1219.2 mm |
| DIN 17172 StE 360.7 EFW Pipe Size | 5.0 mm – 1219.2 mm |
| DIN 17172 StE 360.7 Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| DIN 17172 StE 360.7 Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| DIN 17172 StE 360.7 Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| DIN 17172 StE 360.7 Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| DIN 17172 StE 360.7 Tube Wall Thickness | 0.020" – 0.220", (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut Length Pipe & Tube |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | Round, Hydraulic, ‘U’ Bent, Hollow, LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe, etc. |
| Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ Bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube, etc. |
| End | Plain End, Beveled End, Threaded Pipe & Tube |
| Marking | Standard, Grade, OD, Thickness, Length, Heat No. (or according to customer’s request) |
| Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat Exchanger Tube |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial), Annealed & Pickled, Bending, Machining, etc. |
| Test Certificate | Manufacturer Test Certificate, Laboratory Test Certificate from Govt. Approved Lab, Under Third Party Inspection |
| Customization | Cutting, threading, and grooving as per specifications |
| Element | Composition |
|---|---|
| Carbon | max 0.22% |
| Silicon | max 0.55% |
| Manganese | 0.90 – 1.50% |
| Phosphorous | max 0.04% |
| Sulphur | max 0.035% |
| Molybdenum | – |
| Nickel | – |
| Chromium | – |
| Copper | – |
| Others | – |
| Property | Value |
|---|---|
| Yield Strength | 630 MPa min |
| Tensile Strength | – |
| Elongation A5 | 20% min |
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall - 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall - 12 mm | #ERROR! | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 - 80 mmOD > 80 Wall Thickness < 6 mm Wall Thickness6 - 8 mm Wall Thickness > 8 | #ERROR! | ± 0.30 mm± 0.35 mm± 0.40 mm |
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
|---|---|---|
| 10-100 | #DIV/0! | #DIV/0! |
| 100-600 | #DIV/0! | #DIV/0! |
| 600-1200 | #DIV/0! | #DIV/0! |
| 1200-5000 | #DIV/0! | #DIV/0! |
