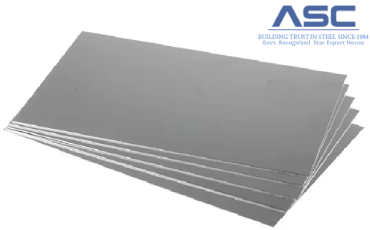

Amardeep Steel Centre offers Nimonic 263 Plate, which is a NIMONIC® alloy manufactured by Special
Metals. This alloy is available in various forms, including Nimonic 263 Sheet, Nimonic 263 Coil,
Nimonic 263 Clad Plate, Nimonic 263 Flat Sheet, and Nimonic 263 Rolling Plate. Nimonic alloy 263
(UNS N07263, 2.4650) is a precipitation-hardenable nickel-chromium-cobalt alloy with the addition of
molybdenum for solid-solution strengthening. It is particularly well-suited for sheet applications.
These alloys are highly regarded for their exceptional performance in high-temperature, low-creep
conditions. In welded structures, nimonic 263 exhibits remarkable strength, corrosion resistance,
formability, and high-temperature ductility. It is commonly used in the fabrication of gas turbines,
such as rings, casings, and various sheet components, and it can withstand temperatures of up to
approximately 1650°F (900°C).
Notably, Alloy C263 plate, or Nimonic 263 plate, demonstrates excellent tensile ductility
at intermediate temperatures and is not prone to strain age cracking issues typically found in other
gamma prime strengthened alloys. This unique combination of properties makes Alloy 263 Plate the
preferred choice for a wide range of fabricated components in both aircraft turbine engines and
land-based turbine applications.
Nimonic® C-263 Plate is also known by alternative names such as Nicrofer 5120 CoTi Plate, Haynes 263
Plate, and Hastelloy C-263 Plate.
| Specifications | : | ASTM B463 / ASME SB463 |
| Standard | : | ASTM, ASME and API |
| Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile. | |
| Size | : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | Nimonic 263 (UNS N07263 ) |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic 263 | 2.4650 | N07263 |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Nimonic 263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Grade |
Material Sheet |
Temperature °C | Yield Strength 0.2 % (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness HV |
| Nimonic 263 | Nimonic 263 Sheet Solution Treated (AMS 5872 / BS HR206) |
RT | – | – | – | 22.5 max |
| Nimonic 263 Sheet Heat Treated (AMS 5872 / BS HR206 |
RT | 580 (typical) | 973 (typical) | 39 – | – | |
| Nimonic 263 Sheet Heat Treated (AMS 5872 / BS HR206 |
780 | 403 (min) | 541 (min) | 9 | – |
| Density: | 0.302 lb/in3 | – | – | – | – | – | |
| Grade | Melting Range: | 2372-2471°F | – | – | – | – | – |
| Nimonic 263 | Temperature, °F | 400 | 800 | 1000 | 1200 | 1400 | 1800 |
| Coefficient* of Thermal Expansion, in/in°F x 10-6 |
6.7 | 7.4 | 7.7 | 8.1 | 8.7 | 10.2 |
| Nimonic 263 Plates | Nimonic 263 Plates |
| Nimonic 263 Plates | Nimonic 263 Sheets |
| 263 Nimonic Coils | 263 Nimonic strips |
| ASTM B463 Nimonic 263 Chequered Plates |
ASME SB 463 Nimonic 263 Plates |
| Nimonic 263 Structural Steel Plates | Nimonic 263 Bright Plates |
| DIN 2.4650 Nimonic Plates | UNS N07263 Nimonic Plates |
| Nimonic 263 Plates Exporter | Nimonic 263 B463 Plates Suppliers |
| 263 Nimonic SB 463 Sheets Stockist | Nimonic UNS N07263 SB 463 Plates |
| 2.4650 B463 Nimonic Plates Distributor | N07263 SB463 Nimonic Plates manufacturer |
| B463 N07263 Nimonic Sheets Stockholder | High quality Nimonic 263 Plates |
| Nimonic 263 SB463 cold rolled Sheets | B463 Nimonic 263 Hot rolled strips |
| Nimonic 2.4650 N07263 cold rolled strips | N07263 Nimonic B463 Hot rolled Sheets |
The NIMONIC alloy 263 is used in the following applications:
