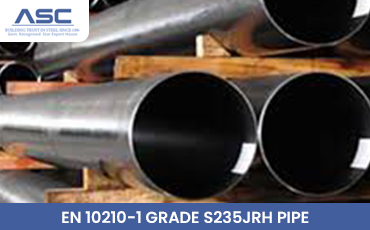

EN 10210-1 Grade S235JRH Pipes & Tubes are seamless, mild carbon steel products with low cost and low carbon content. They contain 0.17% carbon, manganese, phosphorus, and sulfur. Multi Metals (India) is a leading manufacturer and supplier of EN 10210 S235JRH Seamless Pipe types. These pipes offer good machining and welding abilities and can be welded without the risk of localized corrosion due to their low carbon content.
EN 10210-1 Grade S235JRH Carbon Steel Seamless Pipes and Tubes are used in structural, mechanical, and high-temperature or high-pressure applications. These pipes come with varying strength values: the minimum tensile strength is 470MPa and the minimum yield strength is 340MPa. They are supplied in lengths ranging from 5m to 7m.
Amardeep Steel is a supplier of EN 10210-1 Grade S235JRH Carbon Steel Seamless Pipes and Tubes are utilized in various structural, mechanical, and high-temperature and pressure applications. Different types of these pipes offer varying strength values, with a minimum tensile strength of 470 MPa and a minimum yield strength of 340 MPa. These pipes are typically supplied in lengths ranging from 5 meters to 7 meters.
| Property | Specification |
|---|---|
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Type | Seamless, Welded, ERW |
| Length | 6000 – 14000 mm |
| Surface Protection | Black (Self-Colored, Uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Wall Thickness | 0.5 mm – 25 mm |
| Standard | BS EN 10210 - Hot Finished Structural Hollow Sections of Non-Alloy and Fine Grain Steels |
| SHS (Square Hollow Sections) Sizes | 20 x 20 mm – 400 x 400 mm |
| Grade | S235JRH |
| Dimension Range | 21.3 mm – 914 mm |
| Packing | In bundles, Anti-corrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End capped, Certification & supplementary test, Finishing & Identity Mark |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.17 | – | max 1.40 | 0.045 | 0.045 | – | – | – | – | N0.009 |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 340 | 470 | – | 26 | ||
| Outer diameter and wall Thickness | |||
|---|---|---|---|
| Execution | Size Range | OD Tolerance | Wall tolerance |
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall - 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall - 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 - 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 - 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
|---|---|---|
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
| 1/8" IPS(.405" O.D.) | 3 1/2" IPS( 4.000" O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4" IPS(.540" O.D.) | 4" IPS(4.500" O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8" IPS(.675" O.D.) | 5" IPS( 5.563" O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2" IPS(.840" O.D.) | 6" IPS(6.625" O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4" IPS(1.050" O.D.) | 8 ” IPS(8.625" O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1" IPS:(1.315′ O.D.) | 10" IPS(10.750" O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4" IPS(1.660" O.D.) | 12" IPS(12.750" O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2" IPS(1.900" O.D.) | 14" IPS(14.000" O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2" IPS(2.375" O.D.) | 16" IPS(16.000" O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2" IPS(2.875" O.D.) | 18" IPS (18.000" O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3" IPS( 3.500" O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
