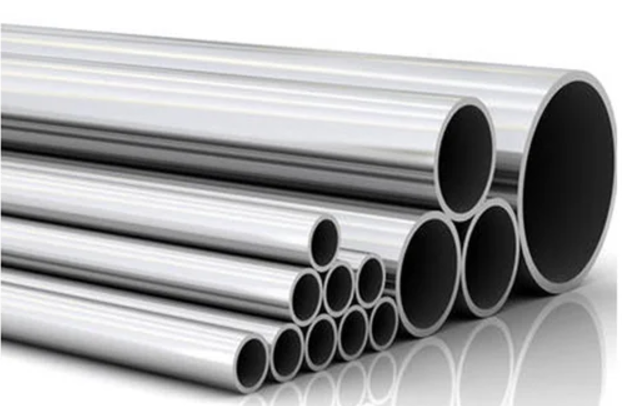

Boiler Tubes Supplier

Amardeep Steel is a leading supplier of Boiler Tubes. SA 214 Carbon Steel Tubes are divided into different parts that specify the properties of boiler tubes at elevated temperatures. BS 3059 Part 2 covers superheater and steel boiler tubes. It is a low-cost carbon that is easy to shape and form due to the addition of manganese. BS 3059 Part 2 Grade 360 is low-carbon steel and is not as hard as high-carbon steel however carburization can increase the surface hardness. The Boiler Tube Price List depends upon the size of the tubes. For instance, a 1.5-inch to 2-inch tube will cost anywhere between Rs 70/kg to Rs 100/kg. Carbon Steel Boiler Tube produced by us is supplied at a reasonable cost to various customers in different industries.

SA 214 Tubes Material is the most common material used in manufacturing boiler tubes. It can be used in sour applications. The high-pressure and medium-pressure tubes have the same initial process of manufacturing. However, Seamless Boiler Tube manufacturers producing high-pressure tubes pass them through heat treatment, quenching, tempering, and annealing. Boiler Tube Material Grade affects the cross-section of the tube, density, and surface of the tube. To remove the brittleness from the pipe tempering is used. Whereas annealing removes the internal stress of the pipes.

A tube from which hot gases of water vapor pass through a sealed container of water is known as Boiler Tubes. Thermal conduction transfers the heat from the vapor that heats the water and creates steam. Boiler Tube suppliers in India recommend the use of boiler tubes for a steam locomotive. Boiler Tubes can be divided into 2 variants. A water boiler tube and a fire boiler tube. SA214 Tubing is usually SA213-T12 and is made up of carbon steel or alloy steel. They are widely used in steam boilers and for power generation. Boiler Tubes suppliers advise the use of these tubes in fossil fuel plants and industrial processing plants.

Boiler Tubes Material Specifications

Common specifications include ASTM A192, A210, A213, and EN10216-2, ensuring durability and performance in demanding environments. The material grade determines the tube's heat resistance, strength, and corrosion resistance. These tubes are widely used in steam boilers, power plants, and industrial applications.

Category	Details
Boiler Tubes Size Range	1/2” NB to 36” NB
Wall Thickness	SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Carbon Steel Pipe Specifications	ASTM A/ASME SA 53 Grade A, B ASTM A/ASME SA 106 Grade A, B, C ASTM A/ASME SA 333 Grade 1, 6 API 5L – PSL 1 Gr. A, B, X42, X46, X52, X56, X60, X65, X70 API 5L – PSL 2 Gr. B, X42, X46, X52, X56, X60, X65, X70
Weld Alternatives	ERW, HF, DSAW/SAWL, SMLS, HSAW
Specifications	ASTM A/ASME SA 179 ASTM A/ASME SA 192 ASTM A/ASME SA 210 Gr. 1, C BS 3059 PART II GR. 360, 440, 620 DIN 2391, ST 35, ST 37, ST 45, ST 52
Size Range	1/2” to 6”, both OD and NB sizes available
Thickness	50mm to 7.00mm, custom OD and thickness available on request
End Connections for Line Pipes	Plain, Bevel, Screwed, Threaded
Type	Seamless, ERW, Welded, Fabricated, CDW
Form	Round Pipes/Tubes Square Pipes/Tubes Rectangular Pipe/Tubes Coiled Tubes “U” Shape Pan Cake Coils Hydraulic Tubes
Length	Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths

Boiler Tube Material Composition

The SA 210 Grade A1 Boiler Tube is made up of a chemical composition consisting of 0.27% of carbon, 0.93% manganese, 0.10% silicon, 0.035% phosphorous, and sulfur. These tubes possess good resistance against corrosion and have good mechanical properties.

Grade	Chemical Composition%
Grade	C	Si	Mn	P, S Max	Cr	Mo	Ni Max	V	Al Max
T2	0.10~0.20	0.10~0.30	0.30~0.61	0.025	0.50~0.81	0.44~0.65	–	–	–
T11	0.05~0.15	0.50~1.00	0.30~0.60	0.025	1.00~1.50	0.44~0.65	–	–	–
T12	0.05~0.15	Max 0.5	0.30~0.61	0.025	0.80~1.25	0.44~0.65	–	–	–
T22	0.05~0.15	Max 0.5	0.30~0.60	0.025	1.90~2.60	0.87~1.13	–	–	–
T91	0.07~0.14	0.20~0.50	0.30~0.60	0.02	8.0~9.5	0.85~1.05	0.4	0.18~0.25	0.015
T92	0.07~0.13	Max 0.5	0.30~0.60	0.02	8.5~9.5	0.30~0.60	0.4	0.15~0.25	0.015

Boiler Tube Size Chart

Boiler tubes come in a variety of sizes, depending on the application and pressure requirements. The size of the tubes is generally defined by their outer diameter (OD) and wall thickness (WT). Below is a general chart listing typical boiler tube sizes:

Outer Diameter (OD)	Wall Thickness (WT)	Common Standards	Application
12.7 mm (1/2 inch)	1.2 mm - 3.0 mm	ASTM A192, A210, A213	Low-pressure boilers, heat exchangers
15.9 mm (5/8 inch)	1.2 mm - 3.5 mm	ASTM A179, A210, A213	Heat exchangers, economizers
19.05 mm (3/4 inch)	1.5 mm - 4.0 mm	ASTM A179, A210, A213	Low-pressure steam boilers
25.4 mm (1 inch)	1.6 mm - 4.5 mm	ASTM A192, A210, A335	Power plant boilers
31.75 mm (1-1/4 inch)	2.0 mm - 5.0 mm	ASTM A213, A335	High-pressure steam boilers
38.1 mm (1-1/2 inch)	2.2 mm - 5.6 mm	ASTM A210, A213, A335	Medium and high-pressure boilers
50.8 mm (2 inch)	2.5 mm - 6.0 mm	ASTM A210, A213, A335	High-pressure boilers, superheaters
63.5 mm (2-1/2 inch)	2.8 mm - 7.0 mm	ASTM A213, A335	Superheater tubes
76.2 mm (3 inch)	3.0 mm - 8.0 mm	ASTM A335, A213	High-temperature service
88.9 mm (3-1/2 inch)	3.2 mm - 10.0 mm	ASTM A210, A335	High-pressure boilers
101.6 mm (4 inch)	3.5 mm - 12.0 mm	ASTM A335, A213	Superheaters, reheaters
114.3 mm (4-1/2 inch)	4.0 mm - 14.0 mm	ASTM A335, A213	Power plant steam systems
127 mm (5 inch)	4.5 mm - 16.0 mm	ASTM A335	Steam pipelines, large industrial boilers

Boiler Tube Thickness Chart

A Boiler Tube Thickness Chart provides a detailed guide to the wall thickness of boiler tubes based on their diameter and material grade. It ensures the selection of appropriate tubes capable of handling high pressure and temperature in boilers and industrial systems. The chart is essential for maintaining safety, efficiency, and compliance with industry standards. It is widely used in power plants, refineries, and processing industries to match application-specific requirements.

NPS (in)	Outside Diameter (in)	Boiler Tubes Schedule
		SCH 10	SCH 20	SCH 30	SCH STD	SCH 40	SCH 60	SCH XS	SCH 80	SCH 100	SCH 120	SCH 140	SCH 160	SCH XXS
		Boiler Tubes Wall Thickness (in)
1/8	0.405				0.068	0.068		0.095	0.095
1/4	0.540				0.088	0.088		0.119	0.119
3/8	0.675				0.091	0.091		0.126	0.126
1/2	0.840				0.109	0.109		0.147	0.147				0.187	0.294
3/4	1.050				0.113	0.113		0.154	0.154				0.219	0.308
1	1.315				0.133	0.133		0.179	0.179				0.250	0.358
1 1/4	1.660				0.140	0.140		0.191	0.191				0.250	0.382
1 1/2	1.900				0.145	0.145		0.200	0.200				0.281	0.400
2	2.375				0.154	0.154		0.218	0.218				0.344	0.436
2 1/2	2.875				0.203	0.203		0.276	0.276				0.375	0.552
3	3.500				0.216	0.216		0.300	0.300				0.438	0.600
3 1/2	4.000				0.226	0.226		0.318	0.318
4	4.500				0.237	0.237		0.337	0.337		0.438		0.531	0.674
5	5.563				0.258	0.258		0.375	0.375		0.500		0.625	0.750
6	6.625				0.280	0.280		0.432	0.432		0.562		0.719	0.864
8	8.625		0.250	0.277	0.322	0.322	0.406	0.500	0.500	0.594	0.719	0.812	0.906	0.875
10	10.750		0.250	0.307	0.365	0.365	0.500	0.500	0.594	0.719	0.844	1.000	1.125	1.000
12	12.750		0.250	0.330	0.375	0.406	0.562	0.500	0.688	0.844	1.000	1.125	1.312	1.000
14	14.000	0.250	0.312	0.375	0.375	0.438	0.594	0.500	0.750	0.938	1.094	1.250	1.406
16	16.000	0.250	0.312	0.375	0.375	0.500	0.656	0.500	0.844	1.031	1.219	1.438	1.594
18	18.000	0.250	0.312	0.438	0.375	0.562	0.750	0.500	0.938	1.156	1.375	1.562	1.781
20	20.000	0.250	0.375	0.500	0.375	0.594	0.812	0.500	1.031	1.281	1.500	1.750	1.969
22	22.000	0.250	0.375	0.500	0.375		0.875	0.500	1.125	1.375	1.625	1.875	2.125
24	24.000	0.250	0.375	0.562	0.375	0.688	0.969	0.500	1.219	1.531	1.812	2.062	2.344
30	30.000	0.312	0.500	0.625	0.375			0.500
32	32.000	0.312	0.500	0.625	0.375	0.688
34	34.000	0.312	0.500	0.625	0.375	0.688
36	36.000	0.312	0.500	0.625	0.375	0.750
42	42.000		0.500	0.625	0.375	0.750

Boiler tubing is used in these industries:

Steam Boilers
Fossil Fuel Plants
Heat Exchangers
Electric Power Plants
Cogeneration Facilities
Waste Heat Plants
Power Generation
Economiser etc

Boiler Tubes Exporter

Amardeep Steel is a trusted exporter of high-quality Boiler Tubes, supplying clients worldwide with products that meet diverse industrial needs.

Mexico, Afghanistan, Italy, Switzerland, Czech Republic, Algeria, Angola, Brazil, Poland, Colombia, Slovakia, Trinidad & Tobago, Tunisia, Chile, Bahrain, Iran, Indonesia, Libya, Croatia, Austria, Norway, Estonia, Belarus, Philippines, Mexico, China, Hungary, Iraq, Jordan, Bolivia, South Africa, Australia, Chile, Israel, Bhutan, Hong Kong, Germany, Poland, Kazakhstan, Spain, Macau, Pakistan, Sri Lanka, Lebanon, Namibia, Sweden, Qatar, Kuwait, Canada, Gambia, Greece, Ukraine, United Arab Emirates, Puerto Rico, Turkey, New Zealand, Oman, Netherlands, Venezuela, Finland, Argentina, United Kingdom, Yemen, Nigeria, Nigeria, Portugal, India, South Korea, Tibet, Malaysia, Peru, Russia, Denmark, Ghana, Singapore, Bulgaria, Iran, Morocco, Ecuador, Gabon, Costa Rica, Azerbaijan, United States, Taiwan, Belgium, Lithuania, Thailand, Bangladesh, Japan, Egypt, Saudi Arabia, Mongolia, Romania, France, Serbia, Ireland, Nepal, Vietnam, Kenya, Zimbabwe.

Boiler Tubes Exporter

Amardeep Steel is a prominent exporter of Boiler Tubes, delivering high-quality products to a diverse clientele across major cities in Europe and beyond.

Ukraine, Costa Rica, Macau, Bulgaria, Afghanistan, Ghana, Nigeria, New Zealand, Qatar, Taiwan, Morocco, Nepal, Malaysia, Portugal, Bolivia, Belgium, South Korea, Finland, Argentina, Azerbaijan, Kazakhstan, South Africa, Iran, Namibia, Chile, Bhutan, Israel, Yemen, Puerto Rico, Turkey, Croatia, Austria, Poland, Netherlands, Mongolia, Sweden, United Kingdom, Belarus, Germany, Colombia, Iraq, Gabon, Poland, Spain, United States, Ecuador, Philippines, Oman, Angola, Italy, Kenya, Lithuania, Lebanon, Gambia, Russia, Hong Kong, Ireland, Sri Lanka, Venezuela, Czech Republic, Romania, Greece, United Arab Emirates, Mexico, Bangladesh, Thailand, Australia, Estonia, Singapore, Indonesia, Mexico, Switzerland, Chile, Norway, Pakistan, Bahrain, Hungary, Slovakia, Egypt, China, Jordan, Serbia, Peru, Trinidad & Tobago, Tunisia, Kuwait, Zimbabwe, Algeria, Japan, Canada, France, India, Iran, Tibet, Libya, Nigeria, Vietnam, Saudi Arabia, Denmark, Brazil.

FAQs

What is ASTM material for boiler tubes?

ASTM A178 tubing is carbon steel and carbon-manganese ERW tubing used in boilers, boiler flues, and superheaters, ASTM A178 is available in A178 Grade A (low carbon steel), A178 Grade C (medium carbon steel), and A178 Grade D (carbon manganese steel).

What is the ASME Code for boiler tubes?

ASTM A192 ASME SA192 Standard-Boiler Tubes, Heat-Exchanger Tubes, Superheater Tubes, Supplier, Beite.

What material is used for tubes?

Material Choices: Metal Tubing. Plastic Tubing. Rubber / Silicone / Elastomer Tubing.
